IEC 60068 Spring Hammer Calibration Device

Product Introduction

The Calibration Device for Spring Operated Impact Hammer, was designed with the requirements of Annex B of IEC 60068-2-75.The Calibration Device for Spring Operated Impact Hammer, is universal for all models, allowing verification of the proper functioning of different types of hammers with the same device.

The principle of this calibration procedure is to compare the energy provided by a spring hammer, which is difficult to measure directly, to the energy of a pendulum, calculated from its mass and height of fall.

Product Features

1.IEC 60068 Compliance: Our Spring Hammer Calibration Device adheres to the rigorous specifications outlined by IEC 60068, guaranteeing conformity to international standards and the highest level of testing accuracy.

2.Precision Calibration: We have experienced and skilled workers to manaufacture it so our product is has superior accuracy and stability than same product in the market.

3.Versatile Compatibility: Designed to accommodate a wide range of spring hammers used in various industries, our calibration device offers versatility and flexibility, making it suitable for calibration purposes across different testing environments.

4.Ease of Use: Featuring user-friendly controls and intuitive operation, our calibration device simplifies the calibration process, saving time and effort for quality assurance professionals.

5.Durable Construction: Built to withstand repeated use and harsh testing conditions, our Spring Hammer Calibration Device is constructed with high-quality materials, ensuring long-term durability and reliability.

Reference

Product Parameter

1.Accuracy: 0.01J

2.The maximum measuring range: 0-2J

3.Impact energy: Max. 2J.

4.The weight: Copper weight cover(2J)

5.Guide groove diameter: 51mm

6.Material of Pendulum : Steel.

7.Diameter of Pendulum: 20mm.

8.Length of Pendulum: 635mm ± 2,5mm.

9.Pendulum H: 120mm ± 2mm.

  Pendulum D: 20mm ± 0,5mm.

  Pendulum W: 4mm ± 0,01mm.

10.The energy loss of the pendulum: <0.002j

11.Release device: Ac. Mechanic.

12.Trigger distance: >30mm

13.Reference: IEC 60068-2-75 fig. B1

Use of the calibration device

The spring hammer to be calibrated is put in the release base and is then operated three times by means of the release device; it shall not be released manually.

For each operation, the striking element of the spring hammer to be calibrated is turned in a different position. The average value of the three readings on the calibration device is taken to be the actual value of the impact energy of the specimen.

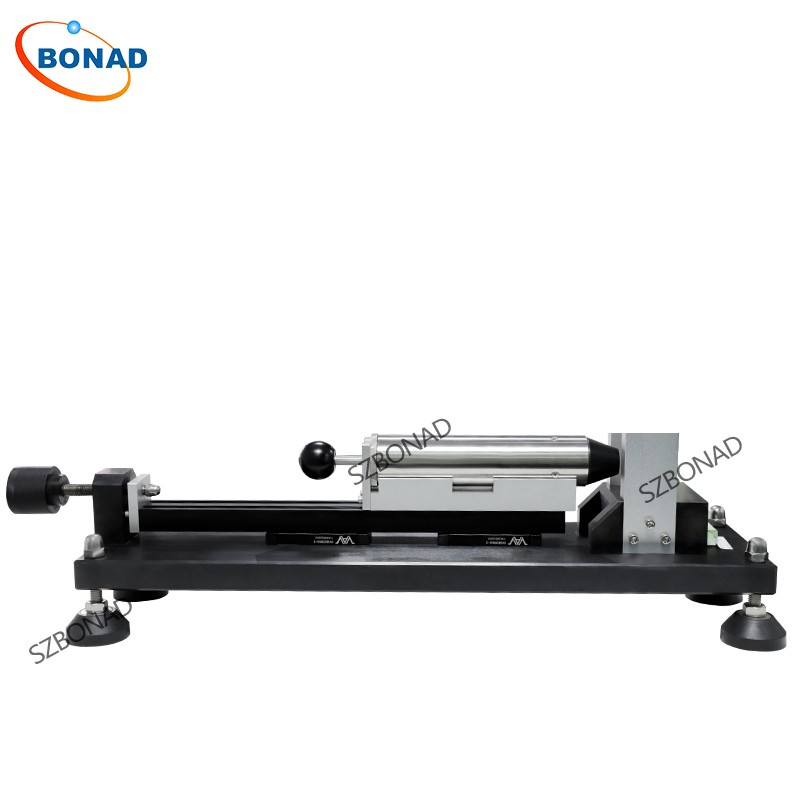

Product Image
