What is the difference between the standard nozzle for the host from IEC60034-5 and the hose nozzle from IEC60529?

Usually, when discussing IPX5 and IPX6 spray nozzles, we are referring to the hose nozzles in accordance with IEC60529. However, we recently received an inquiry about an IPX5 nozzle from UN Regulation No.100-03, and the figure of the nozzle comes from IEC60034-5. This differs from the hose nozzles of IEC60529 in terms of dimensions, delivery rate, and water pressure.


  • Diffrences

Please check the diffrences below;

1.Dimensions

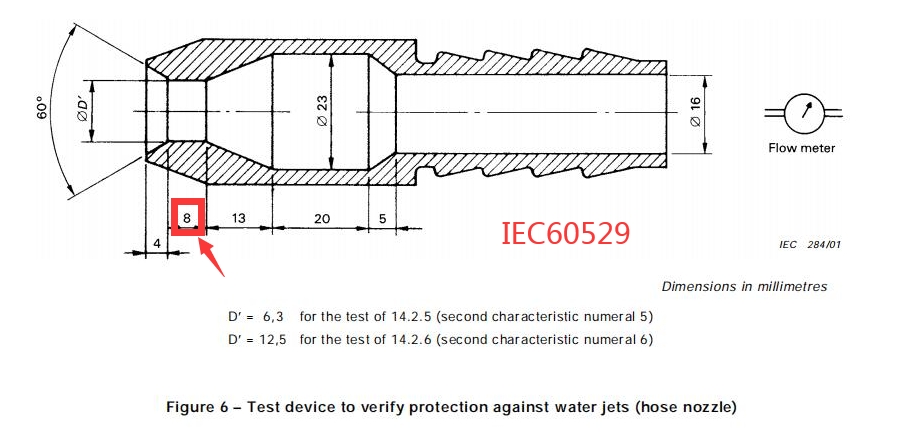

One notable difference is in the dimensions of the nozzles. The IEC60529 IPX5/6 nozzles have a dimension of 8mm, whereas the hose nozzles from IEC60034-5 have a dimension of 6mm. Please refer to the figures below for visual representation:


As our engineers have pointed out, the variation between a 6mm and an 8mm specification predominantly influences the size of water splash.


2.Delivery Rate

Standards

IPX5

IPX6

IEC60529

12.5 L/min±5 %;

100L/min

IEC60034-5

11.9-13.2L/min

95-105L/min


3.Water Pressure

Standards

IPX5

IPX6

IEC60529

to be adjusted to achieve the specified delivery rate

IEC60034-5

approximately 30 kPa

approximately 100 kPa


  • What we did for a customized IPX5 nozzle in accordance in IEC60034-5 (BND-IPX5PS)

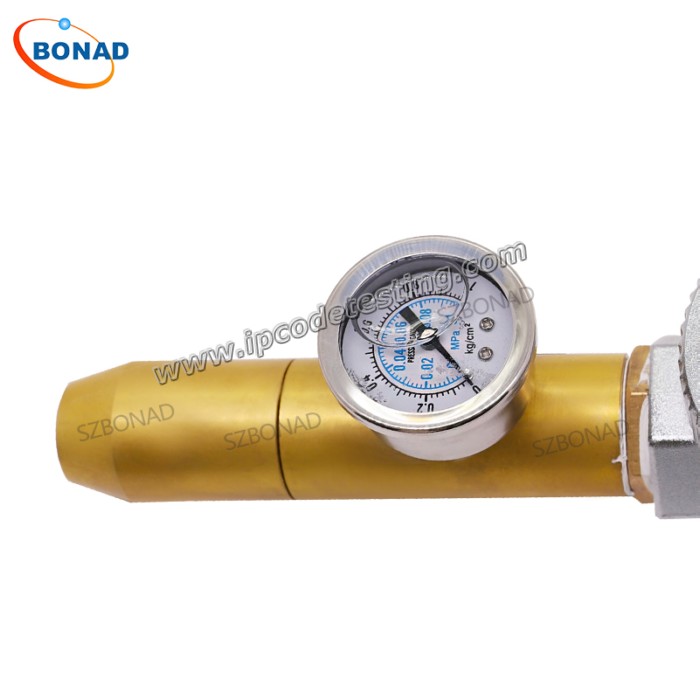

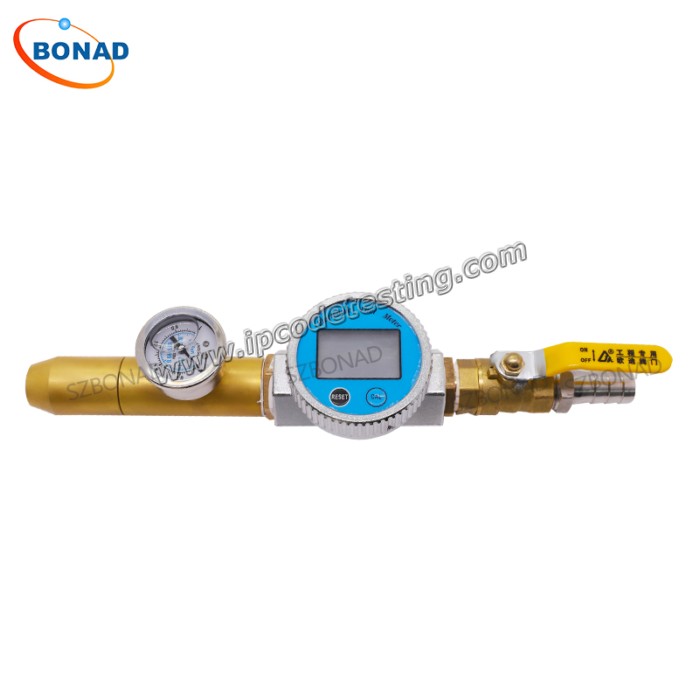

Firstly, we revised the dimension to 6mm to match the hose nozzles in IEC60034-5. Additionally, we changed the pressure gauge to have a smaller range, which allows for more accurate measurements.

  • Calibration certificate from third party lab

Calibration certificate for IPX5 Nozzle01.jpg

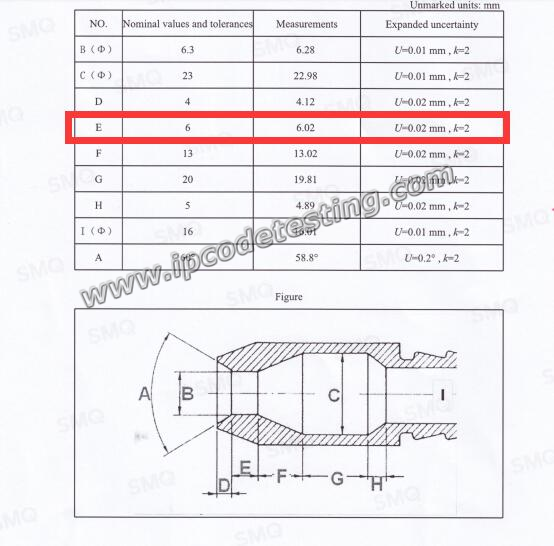

The calibration certificate was obtained from an accredited laboratory in compliance with ISO 17025 standards.


  • References

1. IEC 60529-2001 Degrees of protection providedby enclosures (lP code)

2. UN Regulation No.100.03 Approval of Vehicles with Electric Power Train

3. IEC60034-5 2020 Rotating electrical machines -Part 5: Degrees of protection provided by the integral design of rotating electrical machines (IP code) - Classification
