A Beginner's Guide to IP1X Rating: Protecting Your Electronics from Large Objects

IP1X Rating: Essential Guide to Ingress Protection for Electronics

In the world of electronics, the protection level of a device's casing is key to its longevity and performance. The IP (Ingress Protection) rating system standardizes this measure of protection. One such rating, IP1X, represents a basic level of safeguard against object ingress. This article explores the IP1X rating, its definition, testing process, and implications for electronic devices.

What is the IP1X Rating?

IP1X Explained: The IP1X rating signifies that a device is protected against the ingress of solid objects larger than 50mm in diameter. It's the entry-level rating ensuring that larger debris and body parts cannot penetrate the enclosure.

Enhanced IP1XB Protection: Some devices undergo an advanced test known as IP1XB, offering a higher level of protection against larger objects. This ensures even stricter safety measures.

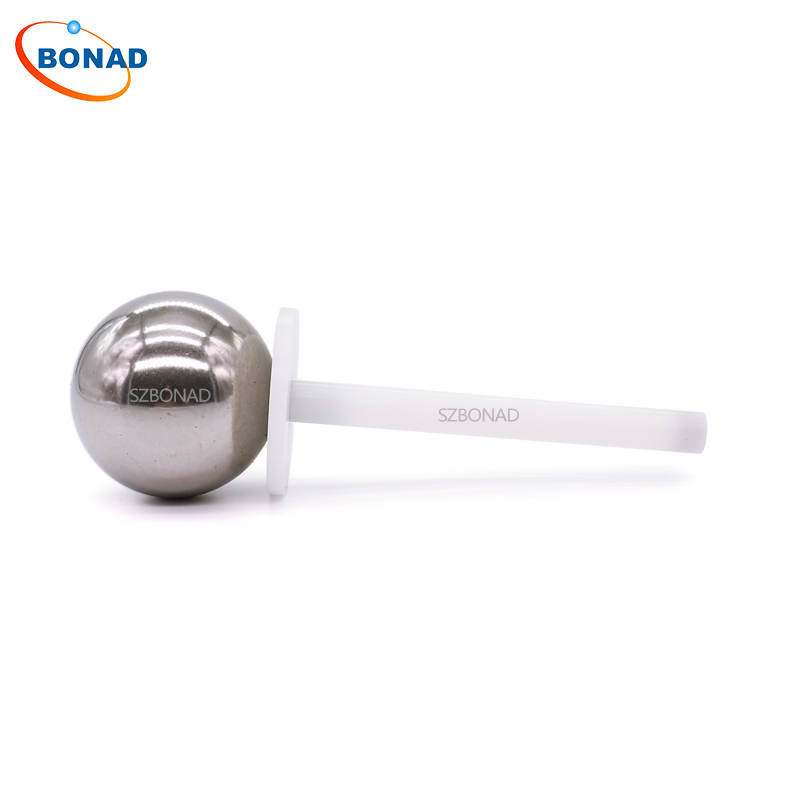

IP1X Probe Test: To earn an IP1X rating, a device undergoes a probe test where a probe of a specified diameter of 50mm checks for access to hazardous parts. If the probe can't reach these parts, the device meets the IP1X standards.

The IP1X Testing Process

Test Methodology: The IP1X test involves using a standardized probe to inspect the device's openings, ensuring it meets the required protection levels.

Purpose of Testing: The main goal of the IP1X test is to prevent accidental contact with internal components, thus avoiding potential injury or damage.

Understanding the IP1X Definition and Its Significance

Definition: According to the IEC 60529 standard, the IP1X rating indicates a device is protected against access to hazardous parts by solid objects larger than 50mm.

Importance for Electronics: The IP1X rating is crucial for devices used in environments where there's a risk of contact with foreign objects or body parts.

Benefits of IP1X Protection

Safety: The IP1X rating ensures users are protected from accidental contact with live components, minimizing the risk of electric shock.

Reliability: By preventing large objects from entering the device, the internal components are better protected, which boosts the product's reliability and lifespan.

Compliance: Many industries require a minimum level of ingress protection for electronic devices. Achieving an IP1X rating is often the first step toward meeting regulatory standards.

The IP1X rating is a fundamental aspect of electronic device protection, offering basic safety and reliability by blocking large object ingress. Understanding the IP1X rating, its testing methods, and its significance is essential for both manufacturers and consumers in the electronics sector.
