IEC 60529 IPX1 IPX2 Ingress Protection Dripping Water Test Equipment

Product ID: BND-IPX12B
IP Rating:IPX1 IPX2
Origin: China
Delivery time: 25-35 work days.
Package:Plywood case
Warranty:12 months.
Product description:IPX1 is for against ingress of water with harmful effects from vertically dripping and IPX2 is for against dripping tilted at an angle of 15°.

EMAIL

IEC 60529 IPX1 IPX2 Ingress Protection Dripping Water Test Equipment

Product Features

1. Pillar structure. The dripping tests are able to observed easily from every direction.

2. Dripping height can be adjusted by electric hoist.

3. The electrical parts of the turntable are well-sealed so as to avoid electrical hazards caused by water.

4. The dripping box is designed for a vacuum technique, which can control the rainfall more precisely.

5.  Drying function with compressed air to remove excess moisture.

6.  Control system: 7-inch touch screen + Panasonic PLC

7.  All specifications are fully in accordance with IEC60529.

8.  ISO 17025 / ILAC calibration certificate available. (with extra cost)

9.  For both IPX1 and IPX2 testing from IEC60529.



Reference

According to IEC60529: Degrees of protection provided by enclosures(IP Code)

IP code

Protection against

Effective against

Details

IPX1

Dripping water

Dripping water (vertically falling drops) shall have no harmful effect on the specimen when mounted in an upright position onto a turntable and rotated at 1 RPM.

Test duration: 10 minutes

Water equivalent to 1 mm rainfall per minute

IPX2

Dripping water when tilted at 15°

Vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle of 15° from its normal position. A total of four positions are tested within two axes.

Test duration: 2.5 minutes for every direction of tilt (10 minutes total)

Water equivalent to 3 mm rainfall per minute

IEC 60529-2013  Figure 3  Test device to verify protection against vertically falling water drops (drip box) 01.jpg

IEC60529 Figure 3 – Test device to verify protection against vertically falling water drops (drip box)



Calibration Certificate


IPX1 IPX2 DRIP BOX CALIBRATION_ad.jpg


* Tips for calibration

1. This is ISO 17025 / ILAC calibration certificate issued by third party lab.

2. It is with extra cost and takes around 7 work days for calibration.

3. Suggested recalibration interval is one year.

4. One item for one certificate and the name and address of your company will be indicated in the cover.



Product Parameters

No.

Model

BND-IPX12B-800

BND-IPX12B-1000

BND-IPX12B-1200

BND-IPX12B-1600

1

Drip of rain area

800*800mm

1000*1000mm

1200*1200mm

1600*1600

2

Equipment outer dimensions

L1400×D1500×H2400 mm

L1500*D1100*H2400mm

L1700*D1300*H2400mm

L2160*D1800*H2700mm

3

Turntable diameter

500 mm

600 mm

600 mm

customize

4

Dripping aperture

0.4mm

5

The distance between holes

20*20 mm

6

Rainfall

1-5mm/Min(±0.5mm/min)

7

Flow adjustment mode

manual setting

8

Drop of rain tank lifting height

1000*1800 adjustable

1000*2000 adjustable

9

Turntable bearing

50KG

10

Turntable Speed

1 r/min

11

Turntable Adjustable Incline

0° or 15°

12

Turntable lifting range

Fixed

13

Testing time

0-999 min

14

Protective device

Leakage, water shortage, short circuit

15

Power (V)

220V

16

Power (KW)

1

17

Standards compliant

IEC60529:1989+A1:1999IPX1 IPX2)







Product Images

IPX1 and IPX2 test equipment.jpg

Controller for IPX1 test equipment.jpg

(Control System)

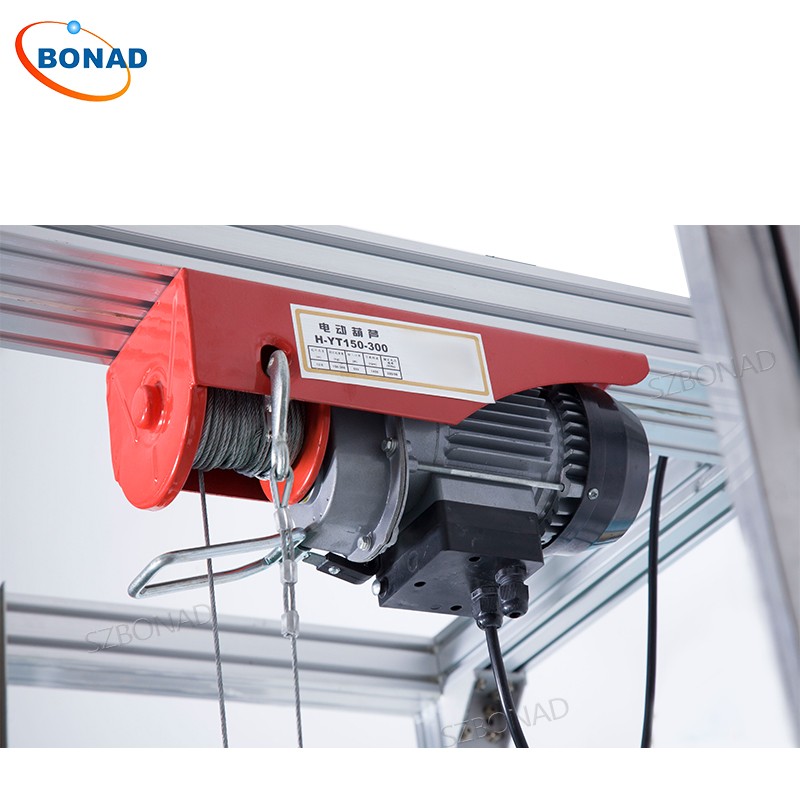

Electric Hoist for IPX2 equipment.jpg

(Electric Hoist)

IPX2 waterproof test equipment.jpg

( Sensor and Protection Cover)

Turntable for IPX1 IPX2 test apparatus.jpg

(Turntable)

socket for sample power supply for IPX1 and IPX2 test.jpg

(Waterproof Socket for Test Sample)

plywood case for waterproof equipment.jpg

(Packed by solid plywood case to avoid damages during transportation.)
