Product ID: BND-IPX34P
IP Rating:IPX3 IPX4
Materials: Brass+ Stainless steel+Aluminium
Origin: China
Status: In stock
Net weight: 2.25kg

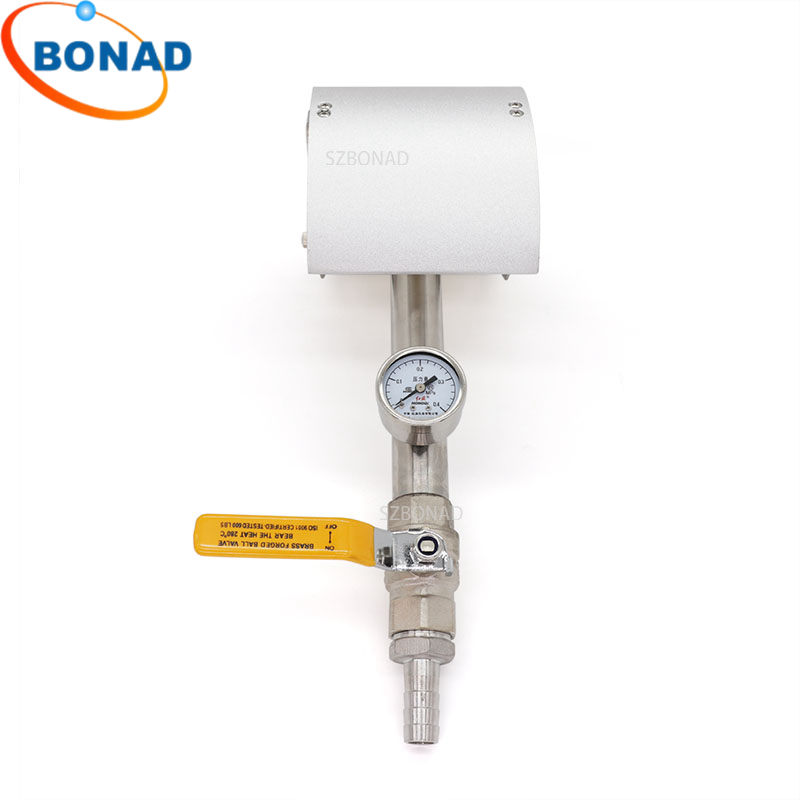

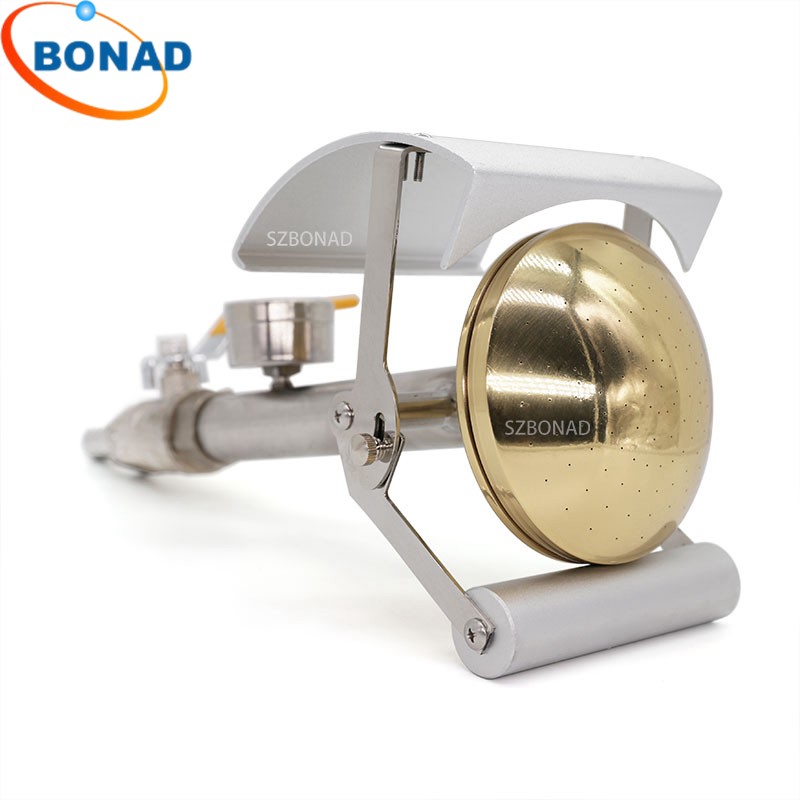

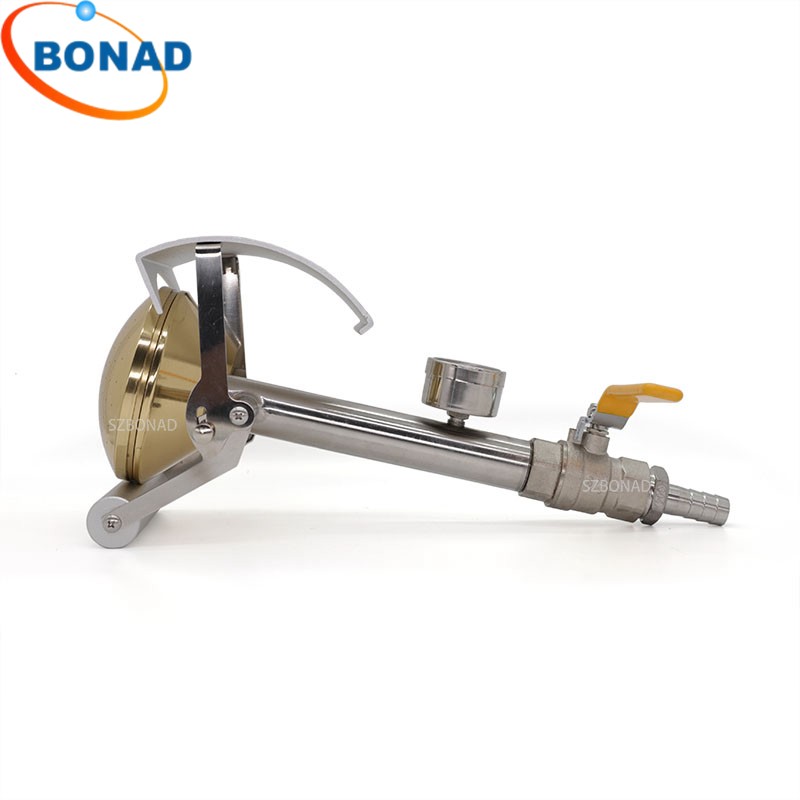

Product description: The IPX3 and IPX4 tests are made using one of the two test device -oscillating tube or spray nozzle; Spray nozzle should be used as a preference in such cases-if for certain types of apparatus it is not possible to wet all parts of the enclosure under test, the support of the enclosure may be moved up or down.
Product Features
1. Good materials for durability;
Spray nozzle: brass
Moving shield: aluminium
Tube: Stainless steel
2. All specifications are fully in accordance with IEC60529.
3. ISO 17025 / ILAC calibration certificate available. (with extra cost)

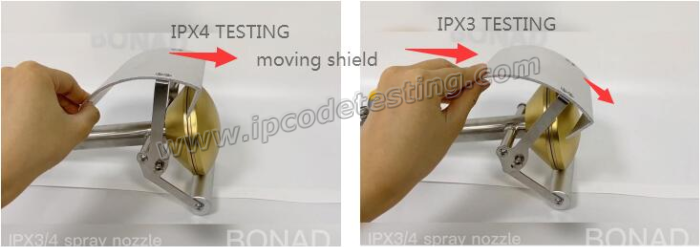

4. Both IPX3 and IPX4 available with a moving shield.

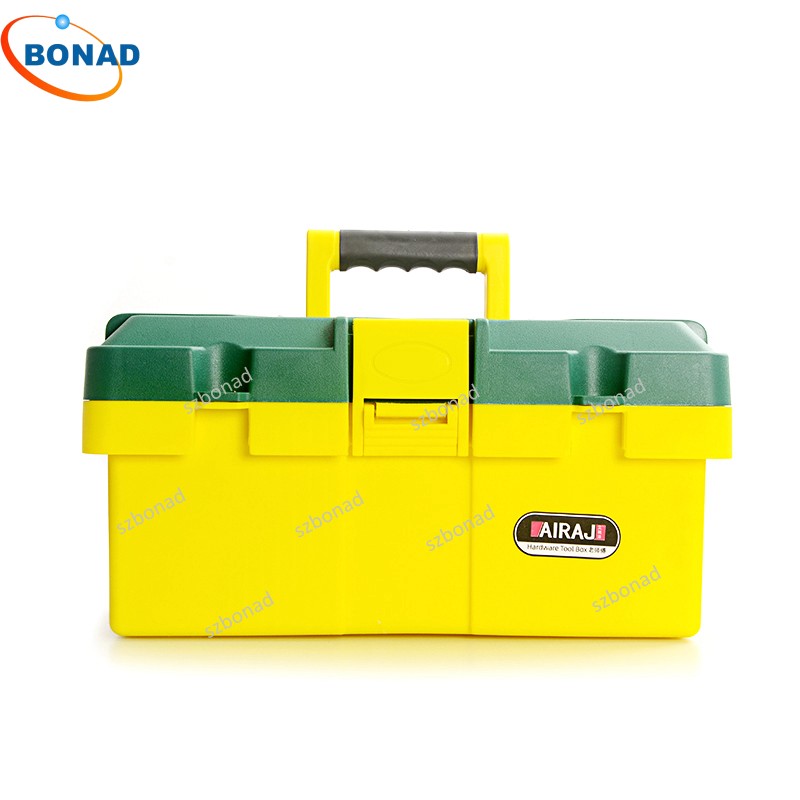

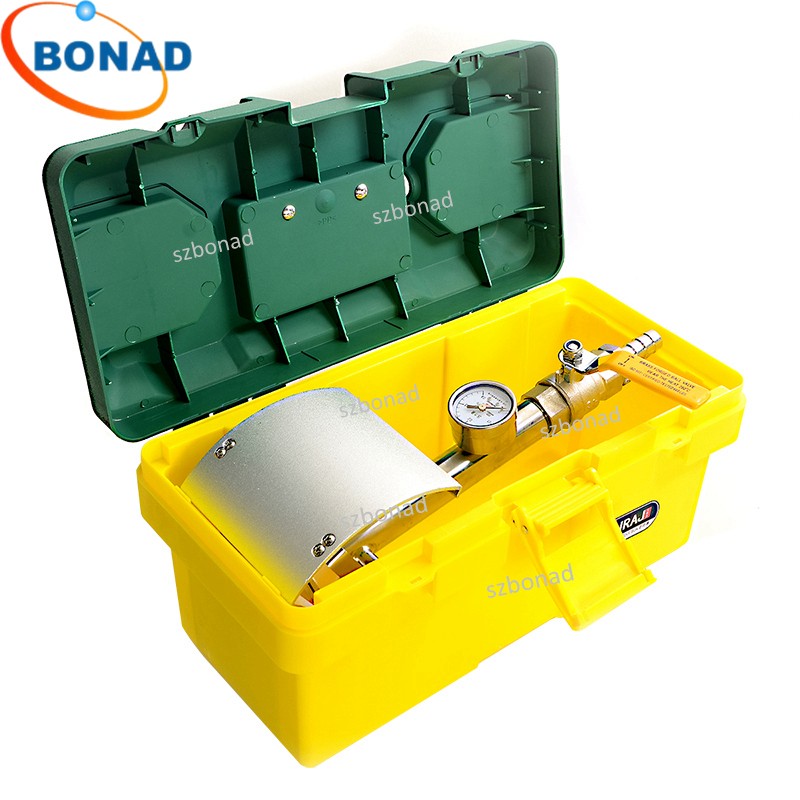

5. Packed in portable case, easy to keep and carry.
Reference
According to IEC60529: Degrees of protection provided by enclosures(IP Code)
Tests for protection against water indicated by the second characteristic numeral
Sencond numeral | Test means
| Water flow rate | Duration of test | Test conditions |
3 | Spray nozzle Spray ± 60° from vertical | 10 l/min ± 5 % | 1 min/m² at least 5 min | The counterbalanced shield is in place for this test. The water pressure is adjusted to give the specified delivery rate. The pressure to achieve this delivery rate will be in the range of 50 kPa to 150 kPa. It should be kept constant during the test. The test duration is 1 min/m2 of the calculated surface area of the enclosure (excluding any mounting surface), with a minimum duration of 5 min. |
4 | Spray nozzle Spray ± 180° from vertical | 10 l/min ± 5 % | 1 min/m² at least 5 min | The counterbalanced shield is removed from the spray nozzle and the enclosure is sprayed from all practicable directions. The rate of water flow and the spraying time per unit area are as specified in IPX3 testing |
IEC60529 Figure 5 – Hand-held device to verify protection against spraying and splashing water;
second characteristic numerals 3 and 4 (spray nozzle)
Calibration Certificate
* Tips for calibration
1. This is ISO 17025 / ILAC calibration certificate issued by third party lab.
2. It is with extra cost and takes around 7 work days for calibration.
3. Suggested recalibration interval is one year.
4. One item for one certificate and the name and address of your company will be indicated in the cover.
Product Parameters
Model | BND-IPX34P |
Water supply | Water pressure is 50~150kpa |
Spray nozzle parameters | External diameter: 102mm Spherical diameter: 75.5mm Number of Holes:121 There is 1 middle hole and 24 holes in the internal circle of holes of which the included angle is 30°. There are 96 holes in the external circle of holes of which the included angle is 15 Diameter of Nozzle Holes:0.5mm |
Water flow | 10L/min±5% (the flow meter is not included) |
Range of pressure gauge | 0~0.4Mpa |
Counterbalanced shield | removable |
Adjustable angle of the shield | 0-30° |
