IEC60598-1 Test Chain for Luminaries

Product Introduction

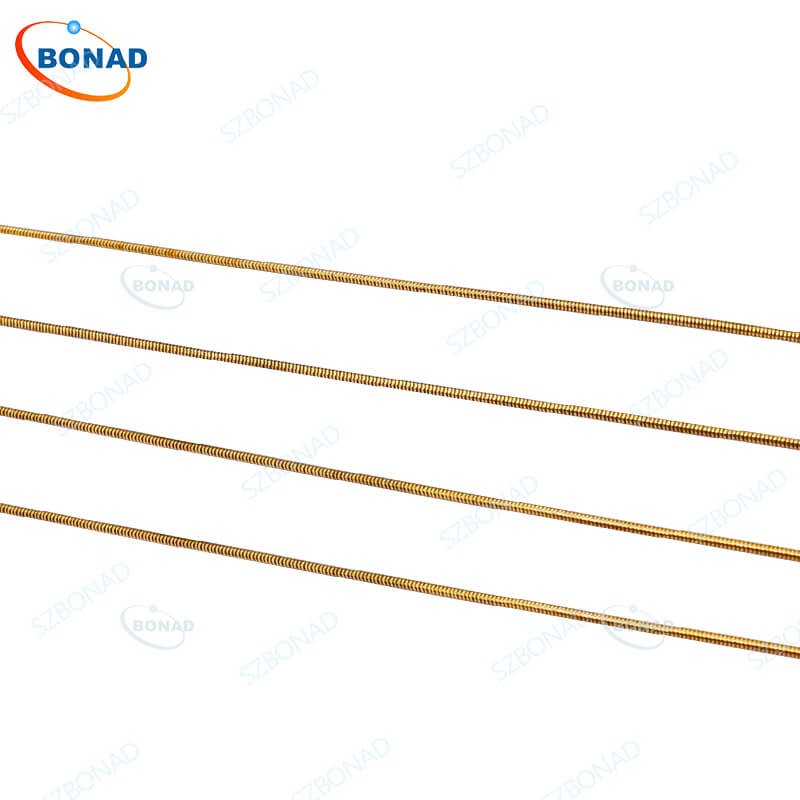

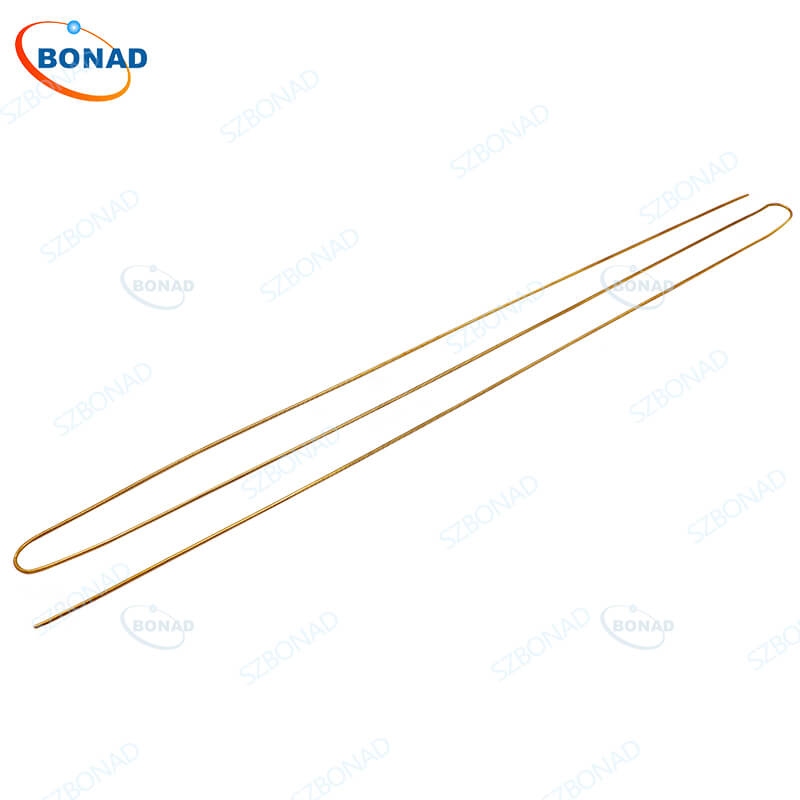

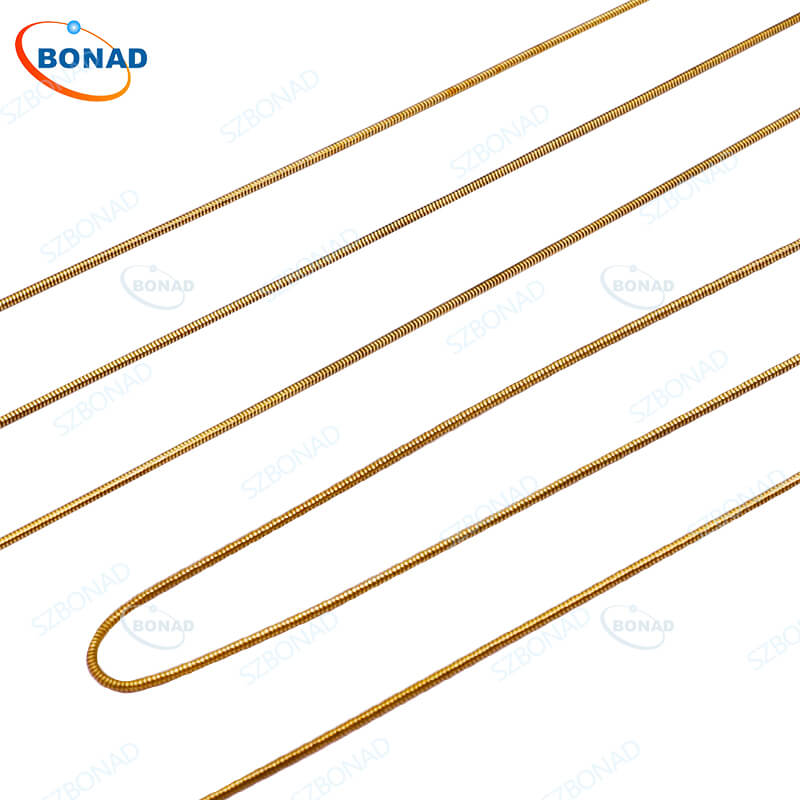

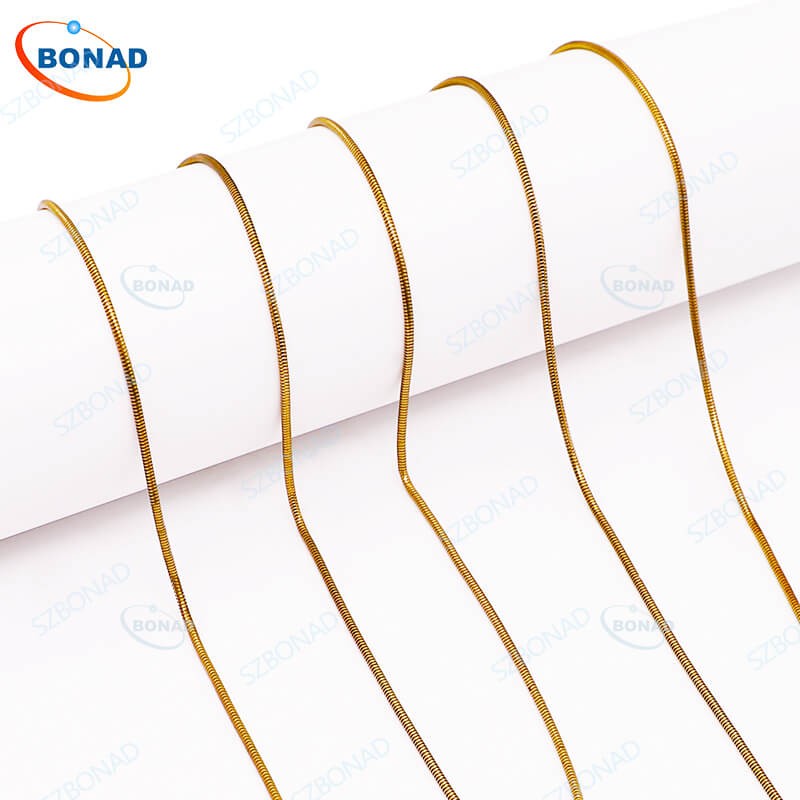

The test chain is designed and manufactured to meet the requirements of 4.26 of the IEC60598-1. It is mainly used for accidental short-circuit protection tests of uninsulated, accessible and opposite SELV parts of the lamp. The test chain is made of copper-zinc alloy (Cu63Zn37) without any surface treatment or coating. The resistance value is within the range of 2.5±20%Ω when the load is stretched at 200g/m.

Product Features

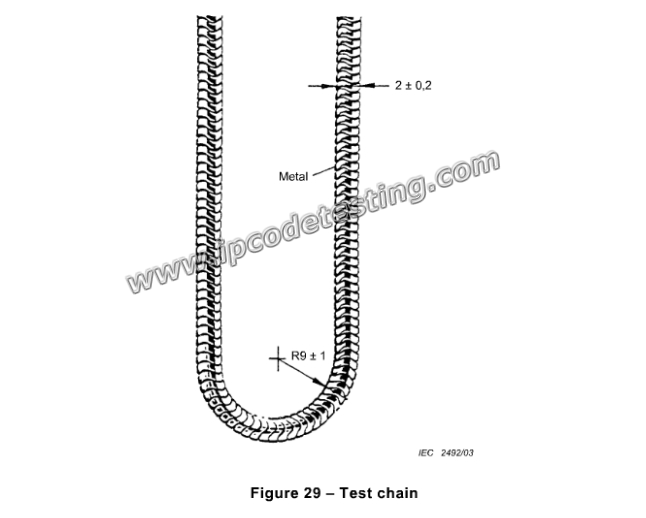

1. All specifications are fully in accordance with IEC 60598-1 Figure 29

2. ISO 17025 / ILAC calibration certificate available. (with extra costs)

Reference

4.26.3 Test chain: A chain of sufficient length of an uncoated metal, having links in  accordance with Figure 29 and made of 63 % Cu/37 % Zn. The chain shall have a resistance  value of 2,5 Ω/m ± 20 % when stretched with a load of 200 g/m.

NOTE The resistance value of the test chain should be checked before each measurement.

* IEC60598-1 Luminaires –  Part 1: General requirements and tests

Product Parameters

Note:

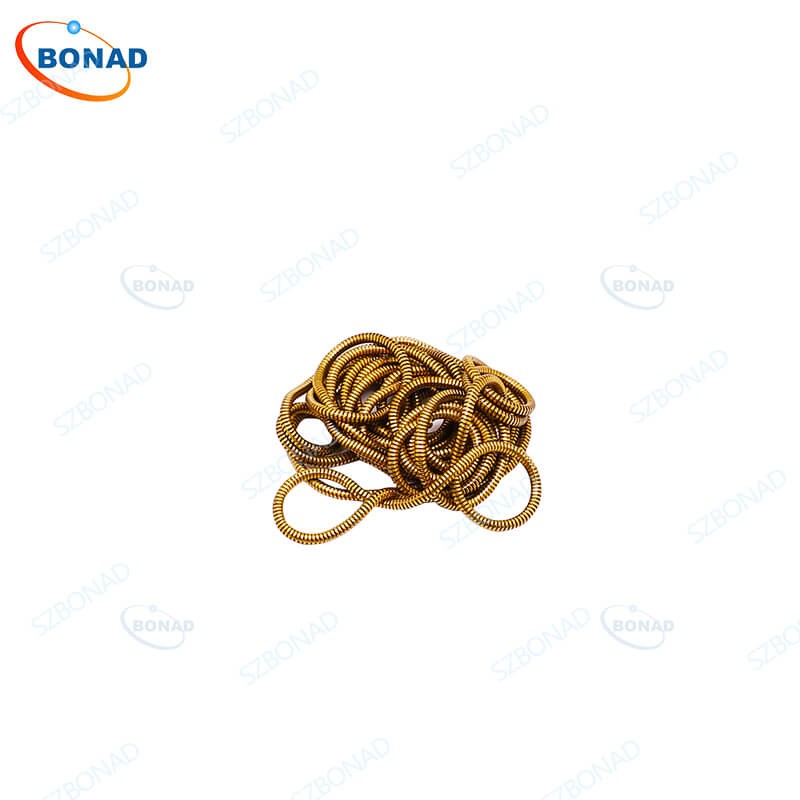

1The test chain is a copper-zinc alloy product, which is easy to oxidize, so pay attention to maintenance.

2When the resistance value fluctuates, it can be ultrasonically cleaned or immersed in a weak acid of 0.5% concentration.

3Excessive counterweight causes the wire diameter to become smaller.

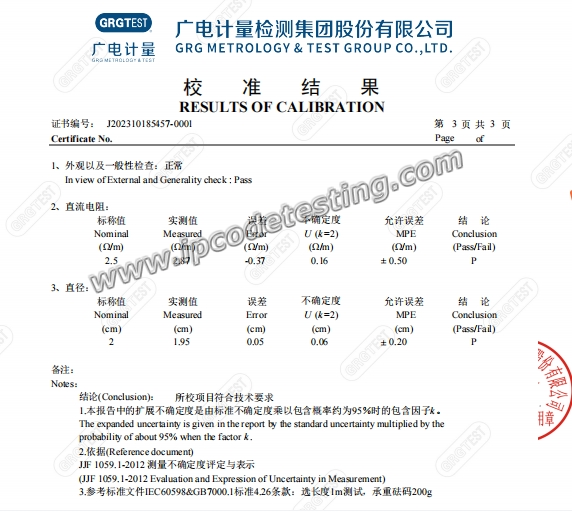

Calibration Certificate

* Tips for calibration

1. This calibration certificate is issued by third party lab.

2. It is with extra cost and takes around 7~10 work days for calibration.

3. Suggested recalibration interval is one year.

4. One item for one certificate and the name and address of your company will be indicated in the cover.

Product Images

Product Q&A

Q1: How to use the test chain?

A:1To measure the resistance of the test chain, you need to straighten it first to ensure that the range is 2.5±20%Ω.

2 Measure the space distance between the two poles of the SELV component and record it as X, the unit (cm/cm).

3The standard counterweight is suspended at both ends of the test chain=15*X*g or the maximum counterweight of 250g.

4 Install a thermocouple at a suitable position of the sample to be tested, and switch on the temperature inspection instrument.

5 The sample is connected to a power supply of 0.9~1.1 times the rated voltage.

6 Place the test chain and conduct a short circuit test.

Note: The melting of the test chain can cause burns.

Q2: The resistance value of the test chain should be checked before each measurement. How should we do if the measured resistance value is far from the needed value?

A:Our engnieer suggests to immerse the test chain in 8% dilute sulphuric acid for 2~5 minutes.( be cautious when handling.)

The process of immersion involves a chemical reaction between copper and acid.

After the solution becomes green, put the test chain into water for several times until the water is clear and test chain is bright.
