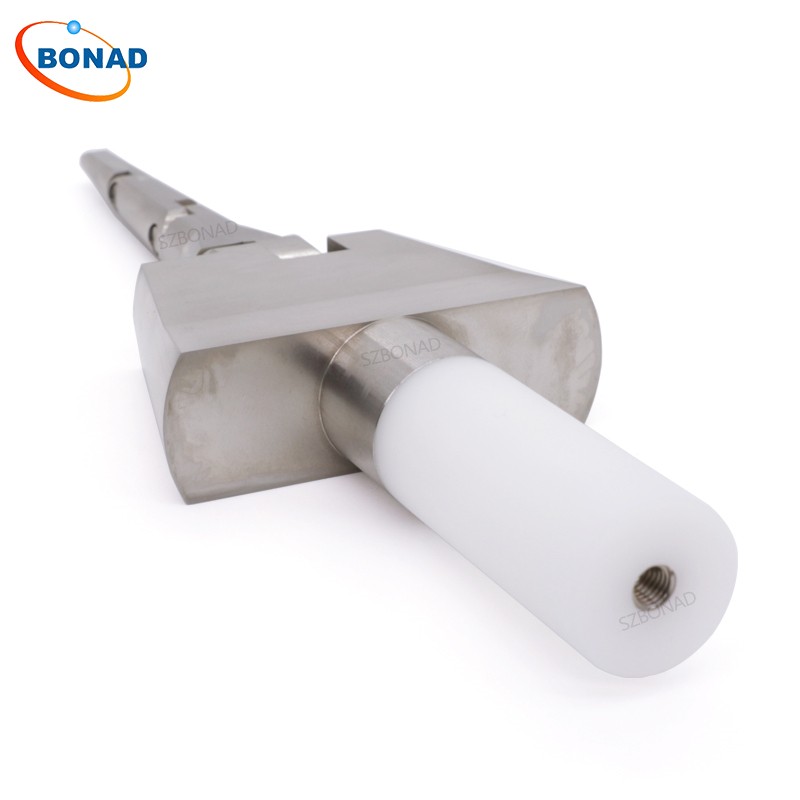

UL Articulated Test Finger Accessibility Probe PA100

Product Introduction

1. BND-UL100 is the "UL" test finger, researched and designed by UL and required by most UL Standards. Palm simulator and restricted joint movement simulates human finger movement. The joint parts and also the stop surface are made of high-grade steel. The links can be positioned at a right angle.  4 mm receptacle is integrated at the handle, which is conductively connected to the finger probe.

2, Mainly used for the inspection to prevent the body touch dangerous live parts, heating or hot parts, mechanical components, as well as inspection of solid foreign bodies into the equipment. It is necessary for protection against electric shock test of household and similar electrical appliances.

Product Features

1. All specifications are fully in accordance with UL507 Figure 9.2

2. ISO 17025 / ILAC calibration certificate available. (with extra costs)

Reference

The probe shall be used as measuring instruments to judge the accessibility to uninsulated live parts and film-coated wire provided by openings and not as instruments to judge the strength of a material. Force is not to be applied to the probe when judging accessibility.

Inserted through the opening, cannot be made to touch any uninsulated live part or film-coated wire that involves the risk of electric shock. The probe shall be applied in all possible articulated positions before, during, and after insertion.

1. According to UL507 Figure 9.2 (PA100A), UL1026 Figure 7.2 (PA100A), UL1278 Figure 8.3 (PA100A) and other UL standards.

Product Specifications

Calibration Certificate

* Tips for calibration

1. This calibration certificate is issued by an accredited laboratory in accordance with lSO 17025.

2. It is with extra cost and takes around 7~10 work days for calibration.

3. Suggested recalibration interval is one year.

4. One item for one certificate and the name and address of your company will be indicated in the cover.

Product Images
