All in One Integrated Waterproof Test Chamber for IPX1 IPX2 IPX3 IPX4 IPX5 and IPX6 Tests

Product ID: BND-IPX16BS
Origin: China
Delivery time: 25-35 work days.
Package:Plywood case
Warranty:12 months.
Product description:The BND-IPX16BS is an advanced, integrated testing machine capable of performing IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6 tests—all in one unit. This versatile machine is designed to meet a wide range of testing needs with exceptional efficiency.

EMAIL





Product Description

Introducing the IPX16 testing device, an essential tool for evaluating the waterproof performance of outdoor lamps, household appliances, auto parts, and other electronic products. This device offers a comprehensive range of tests, complying with standards like IEC60529 IPX1 to IPX6.




Key Features


1.Versatile Testing: Capable of conducting IPX1 to IPX6 waterproof level tests on various products.

2.Robust Construction: Crafted from high-quality steel with a durable baked paint surface, ensuring longevity.

3.Rust-Resistant Design: Inner components, including the box, turntable, and swing pipe, are made of long-lasting SUS304# stainless steel.

4.Efficient Water Management: Equipped with an in-built water tank and automated water intake control, accompanied by low water level alarm detection.

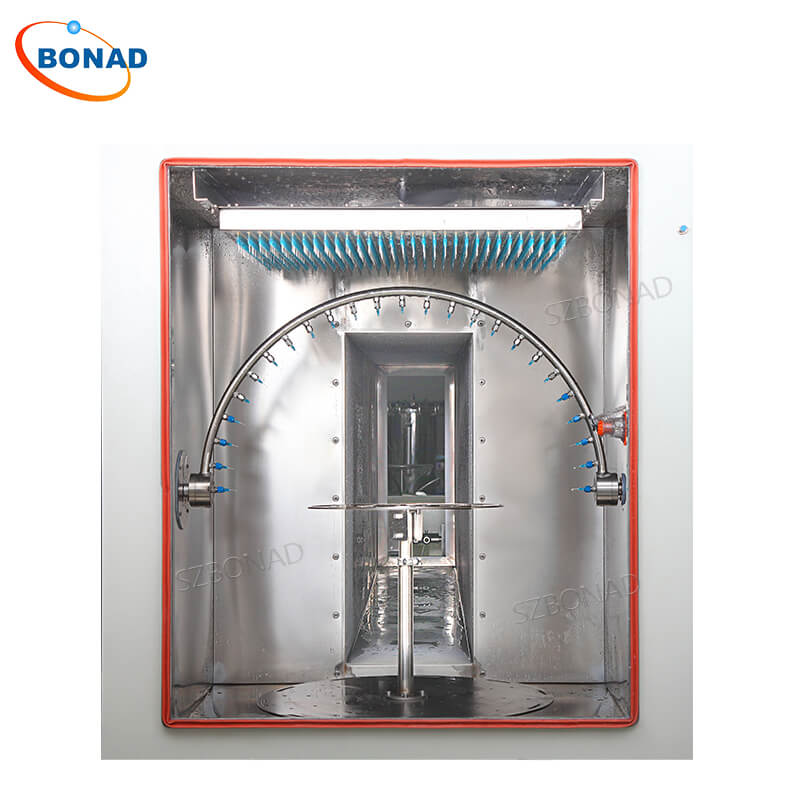

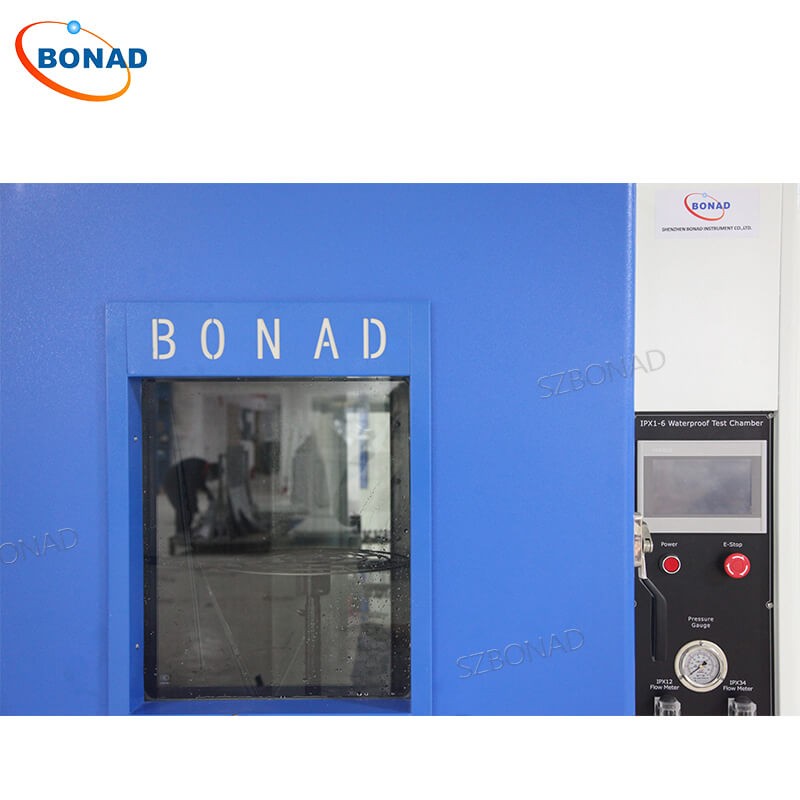

5.Easy Monitoring: Transparent observation window (made of tempered glass) and LED lights allow convenient observation of the internal test conditions.

6.Precise IPX12 Testing: Incorporates a vacuum-designed drip tank made of stainless steel, featuring a brass cone design for easy installation of the water spray needle.

7.Convenient Air-Drying Function: After completion of the IPX12 test, excess water in the drip tank can be removed using compressed air, preventing water accumulation and scaling issues.

8.Smooth Oscillation: Utilizes high-quality stepping motors to drive the oscillating tube, ensuring precise speed and adjustable angles without any out-of-step problems.

9.Adheres to IPX56 Specifications: Manufactured in accordance with the IEC60529 specifications.

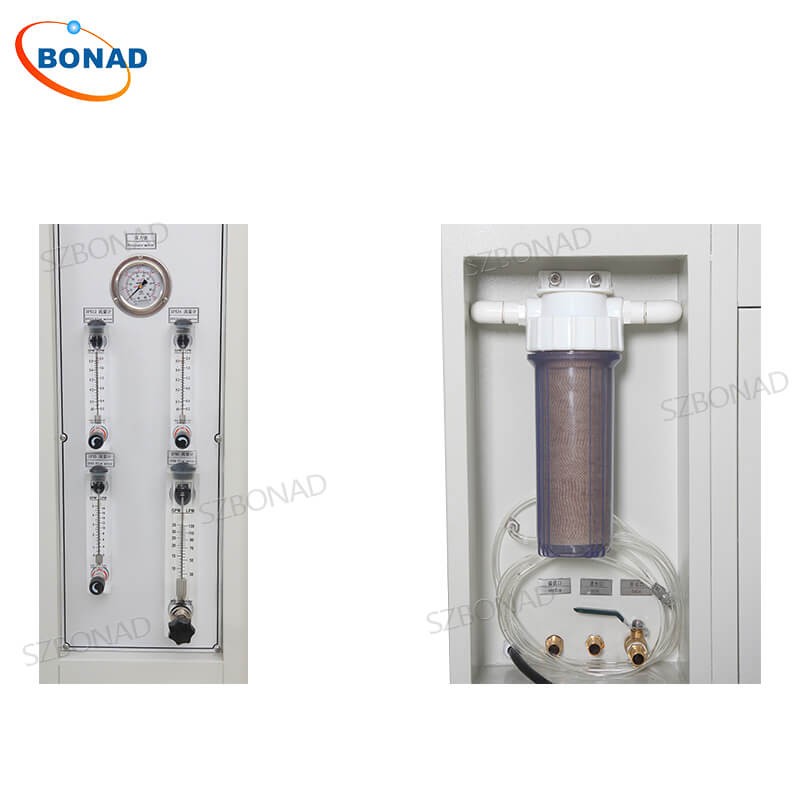

10.Effective Filtration: Equipped with a high-precision filter system that efficiently removes impurities from tap water, with easily replaceable filter elements.

11.User-Friendly Turntable Control: The turntable drive utilizes a high-quality stepping motor, enabling customizable speed and angle adjustments via the touch screen, facilitating smooth and accurate rotation within the defined range. Additionally, it supports automatic forward and reverse rotations, making it suitable for energized testing of samples to prevent winding issues.

12.Sample Power Socket: The test box includes a power socket (AC220, 10A) dedicated to the samples, allowing programmable control of power cycles: power off (0-999min) - power on (0-999min) - power off (0-999min). This feature is beneficial for conducting tests that require periodic power cycling.

13.Flexible Test Time Setting: The touch screen interface allows users to set the test duration within a range of 0-999 minutes, offering flexibility to accommodate different testing requirements.

14.Advanced Control System: Incorporates a core control system consisting of a 7-inch touch screen and a Panasonic PLC (Programmable Logic Controller). It employs electrical components sourced from trusted imported brands such as LS and Omron, ensuring reliability and adherence to national wiring standards.

15.With the IPX16 testing device, you can confidently assess the waterproof capabilities of your products, enabling you to design and manufacture superior-quality items that meet the highest standards.



Reference



IPX12 Dripping box.jpgIPX3 IPX4 oscillating tube test device.jpgIPX5 IPX6 NOZZLE IEC60529 01.jpg




* Reference - IEC 60529 Degrees of protection provided by enclosures (IP Code)






Product Specifications



Model

BND-IPX16BS-R400

Control System

(Touch type) 7" touch screen + Panasonic PLC

Inner box size (mm)

Width 900 × depth 900 × height 1050

outside size (mm)

Approx. L 1350* D 3400* H 1750 mm

IPX1-2 technical parameters

Drip area

600*600mm

IPX1/2 Water spray aperture diameter (mm)

0.4mm

Water Spray aperture space

20*20mm

rainfall

IPX1=1mm/minIPX2=3mm/min

Drip plate lifting

fixed

IPX3-4 technical parameters

Swing tube radius (mm)

R400(R200 can be optional)

R400 Pipe flow (L/mm)

IPX3=1.1L/minIPX4=1.8L/min

Water spray aperture diameter (mm)

0.4

Water spray aperture space (mm)

50

Swing tube inner diameter (mm)

15

Swing tube angle

IPX3=±120°,IPX4=±350°,or setting

Swing tube speed

240° 4S720°12S (precise control)

Flow control method

Manually adjust flow with adjustable panel flow meter

IPX5-6 technical parameters

IPX5 water spray aperture (mm)

6.3

IPX6 water spray aperture (mm)

12.5

IPX5 water spray flow rate (L/min)

12.5±0.625

IPX6 water spray flow rate (L/min)

100±5L/min

Water pressure (Mpa)

Regulated water flow regulation

Water spray distance

2.5 meters

Spray gun swing

Swing up and down (angle, speed adjustable)

Flow control method

Manually adjust flow with adjustable panel flow meter

Turntable technical parameters

Sample turntable diameter (mm)

400(can add 200 additional)

Sample turntable speed

1-5r/min (accurately adjustable)

Adjustable Lean

 or 15°( horizontal direction)

Test turret height adjustable range

400mm-750mm

Rotate working type

Forward/ Reversal/ forward-reversal

Electric technical parameters

Power supply (V)

AC380V±10% 50Hz±10% 3 Phase 4 wires

Sample plug power supply

220v

Power (KW)

3.0KW

Standards compliant

IEC60529IPX1, IPX2, IPX3,IPX4,IPX5,IPX6)

protective device

Leakage, water shortage, short circuit




Product Images

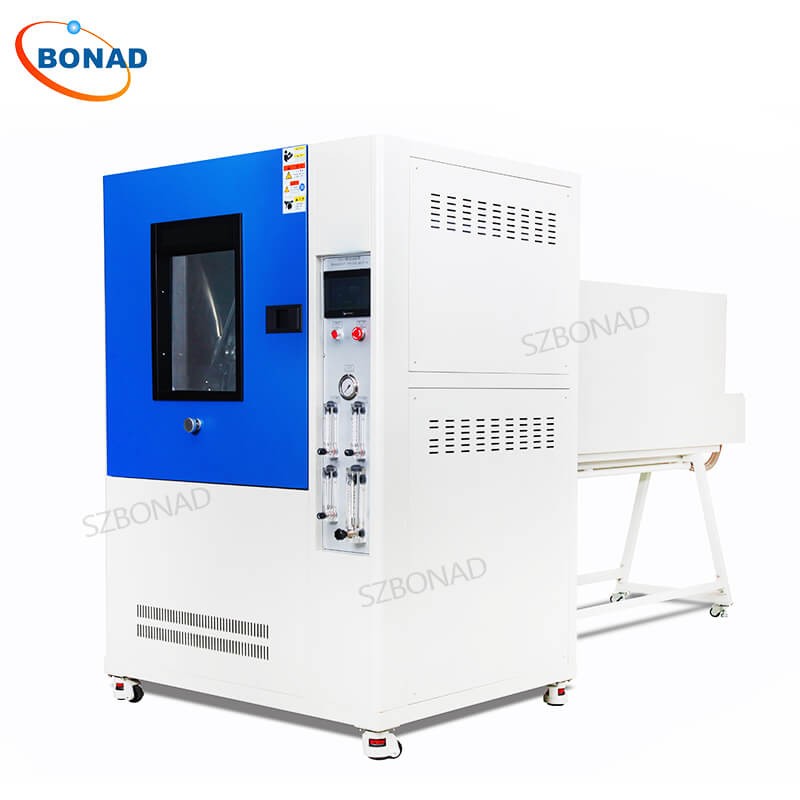

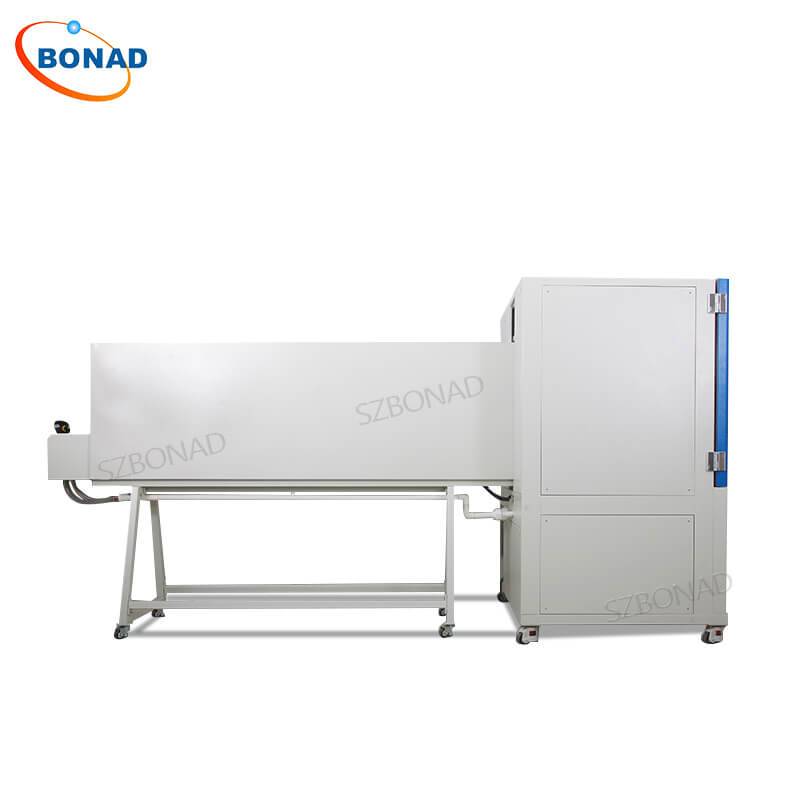

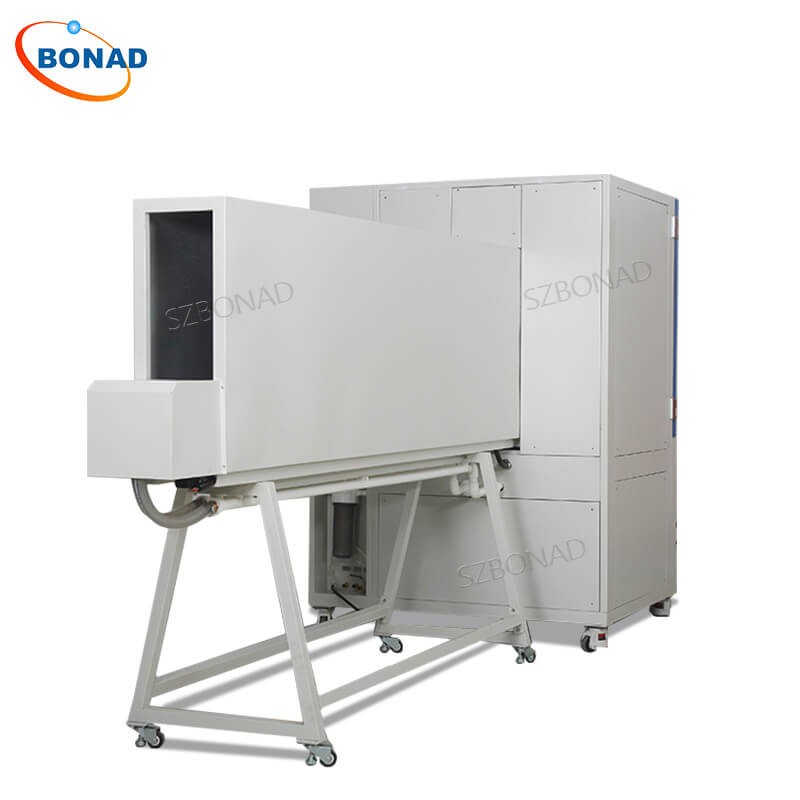

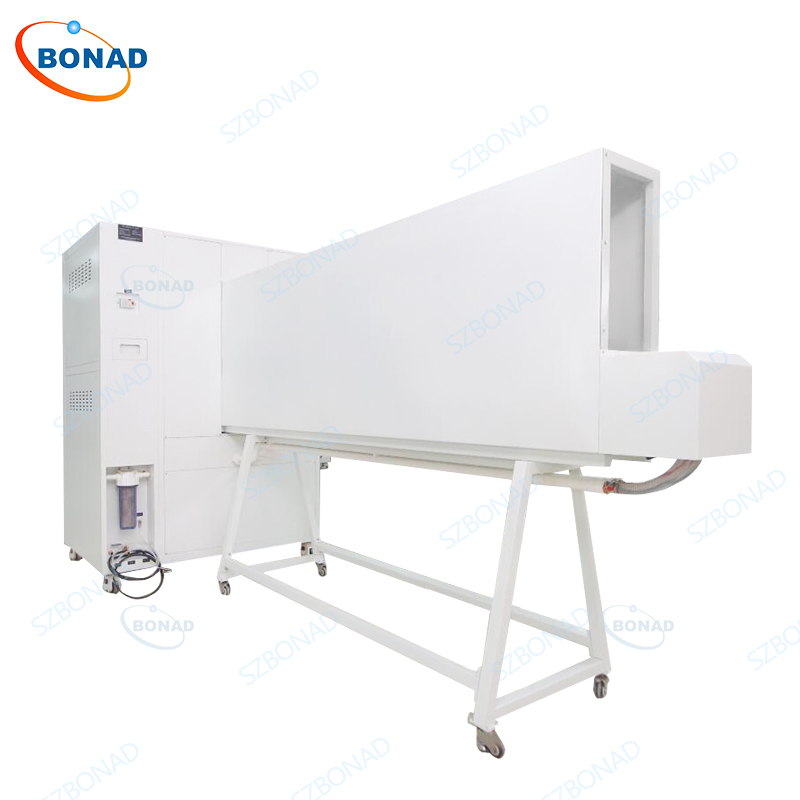

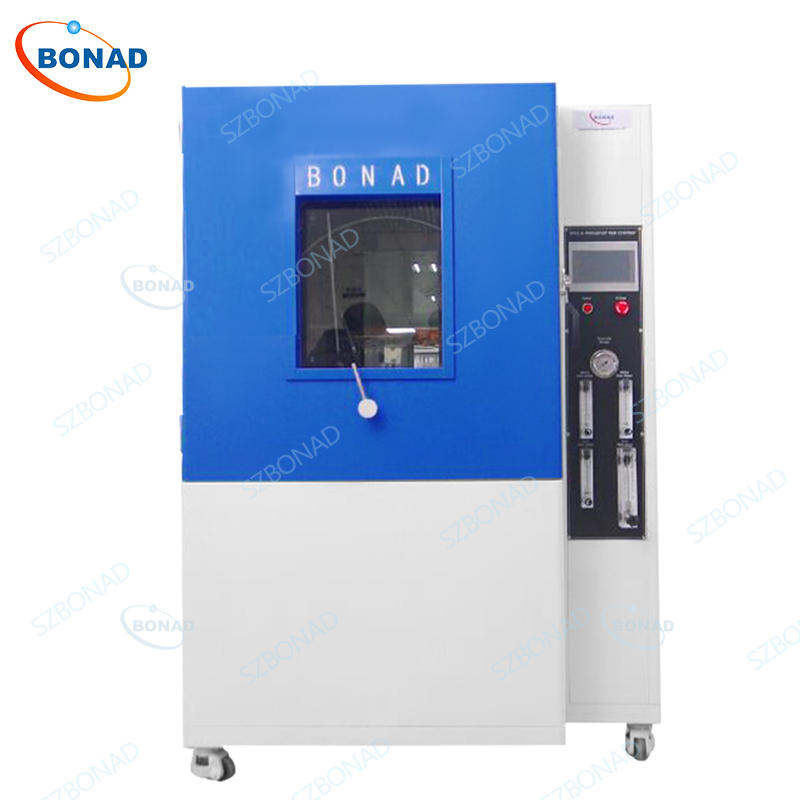

IPX1 IPX2 IPX3 IP4 IPX5 IPX6 Waterproof Test Equipment.jpg



IEC 60529 IPX1 IPX2 IPX3 IPX4 IPX5 IPX6 Test Chamber.jpg


IPX Code test equipment.jpg




Rain Test Serials.jpg



(Packed by solid plywood case to avoid damages during transportation.)
