Compact 1500W&2000W Power Sensors

Product ID: BND-1500ZC-D35/BND-2000ZC-D35
Power range:10W-1500W/10W-2000W
Apture:35mm
Cooling type:Water Cooled
Origin: China

EMAIL

Compact Size 1000W & 2000W Laser Power Sensors


Key Features

1.Measures laser power continuously, up to 2000W.

2.Compact size: 64×64×44.5mm, easy to integrate.

3.High absorption capability.

4.35mm aperture.

5.Water-cooled.

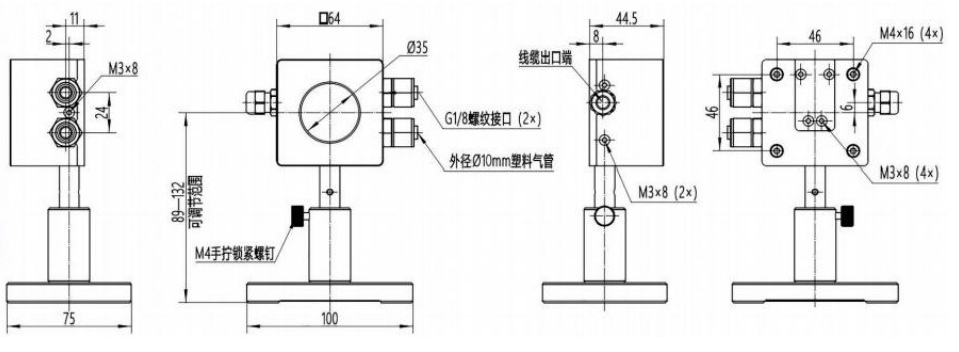

Dimensions

(unit:mm)

Compact 1000w and 1500w power sensor.jpg


Product Specifications

Model

BND-1500ZC-D35

BND-2000ZC-D35

Absorptior

90%

90%

Wavelength Range

266nm-10.6um

266nm-10.6um

Power Range

10W-1500W

10W-2000W

Scale

Auto

Auto

Aperture

35mm

35mm

Power Resolution

0.1W

0.1W

Response Time(0-95%) (a)

5s

5s

Calibration Uncertainty

<3.5%

<3.5%

Non-linearity

<±1%

<±1%

Accuracy

±4%

±4%

Damage Threshold (b)

1.7kW/cm2 @1.5kW

1kW/cm2 @2kW

Cooling

Water

Water

Recommended Water Flow

Rate@Full power (c)

3L/min

5L/min

Dimension

64×64×44.5mm

64×64×44.5mm

Cable Length

5m

5m

Connector Type

DB15

DB15

Notes:

(a).Time from zero to 95% of stable value;

(b).Recommended laser diameter:>10mm@1.5kW;>16mm@2kW;

(c).Recommended water temperature range:18-30°C; Water temperature change rate:<1℃ /min.




Product Images


compact laser sensor for 1000w and 1500w.jpg
