IPX8 Submersion Water Tester Stainless Steel Immersion Water Tank

Product ID: BND-IPX8
IP Rating:IPX8
Origin: China
Delivery time: 25-35 work days.
Package:Plywood case
Warranty:12 months.
Product description:The IPX8 Continuous Immersion Tank facilitates the IEC60529 IPX8 immersion test by fully submerging the specimen in water according to manufacturer specifications.

EMAIL

Introduction

The IPX8 Continuous Immersion Tank facilitates the IEC60529 IPX8 immersion test by fully submerging the specimen in water according to manufacturer specifications.


The IPX8 immersion test method is crucial for determining the water resistance of consumer electronics and outdoor electronic products. This laboratory procedure assesses how prolonged exposure to liquid affects electronic devices, ensuring they can operate safely in their intended environments.


During IPX8 water ingress testing, products are submerged continuously to simulate real-world conditions and verify their durability against water infiltration.


This testing method is essential for manufacturers and consumers alike, guaranteeing that electronic devices can withstand and perform reliably in challenging environmental condition。



Key Features


1.Simulates Deepwater Environment: Utilizes an advanced air pressurization system to accurately replicate deepwater conditions.


2.Automatic Relief Valves: Equipped with automatic relief valves that activate upon reaching limit pressure, ensuring safe operation and preventing overpressure.


3.Pressure Regulating Device: Incorporates a pressure regulating device to maintain constant pressure, delivering precise and consistent results during operation.


4.Long-Term Corrosion Resistance: Designed for extended durability, the product is resistant to corrosion, ensuring a prolonged service life even in challenging environments.



Reference

According to IEC60529: Degrees of protection provided by enclosures(IP Code)

IP code

Protection against

Effective against

Details

8

Immersion, 1 m or more depth

The equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects. The test depth and duration is expected to be greater than the requirements for IPx7, and other environmental effects may be added, such as temperature cycling before immersion.

Test duration: Agreement with Manufacturer

Depth specified by manufacturer, generally up to 3 m





Product Specifications

No.

Model

IPX8-30A-100L

IPX8-50A-100L

IPX8-30A-250L

IPX8-30A-250L

1

Pressure adjustment method

automatic adjustment

automatic adjustment

automatic adjustment

automatic adjustment

2

control accuracy

±0.002Mpa(AUTO)

±0.002Pa(AUTO)

±0.002Mpa(AUTO)

±0.002Mpa(AUTO)

3

Pressure adjustment range

0-0.3Mpa

0-0.5Mpa

0-0.3Mpa

0-0.5Mpa

4

Test water depth range

0-30M

0-50M

0-30M

0-50M

5

Exhaust Pressure of safety valve

0.35Mpa

0.55Mpa

0.35Mpa

0.55Mpa

6

The maximum limit of pressure

0.4Mpa

0.6Mpa

0.4Mpa

0.4Mpa

7

accuracy

0.001Mpa

0.001Mpa

0.001Mpa

0.001Mpa

8

The thickness of the tank

3mm

4mm

3mm

4mm

9

thickness of flange

20mm

25mm

20mm

25mm

10

diameter of the tank

500mm

500mm

11

height of the tank

500mm

1200mm

12

Outer size

610*780*1050mm

600*780*1750mm

13

Material of tank

SUS304#

14

Control time

0-999Min

15

Protection function

pressure safety protection,anticreeping switch

16

voltage

220v

17

Power (w)

100W

18

weight

70kg

90kg

120kg

140kg

19

Standard

IEC60529 IPX8





Product Images

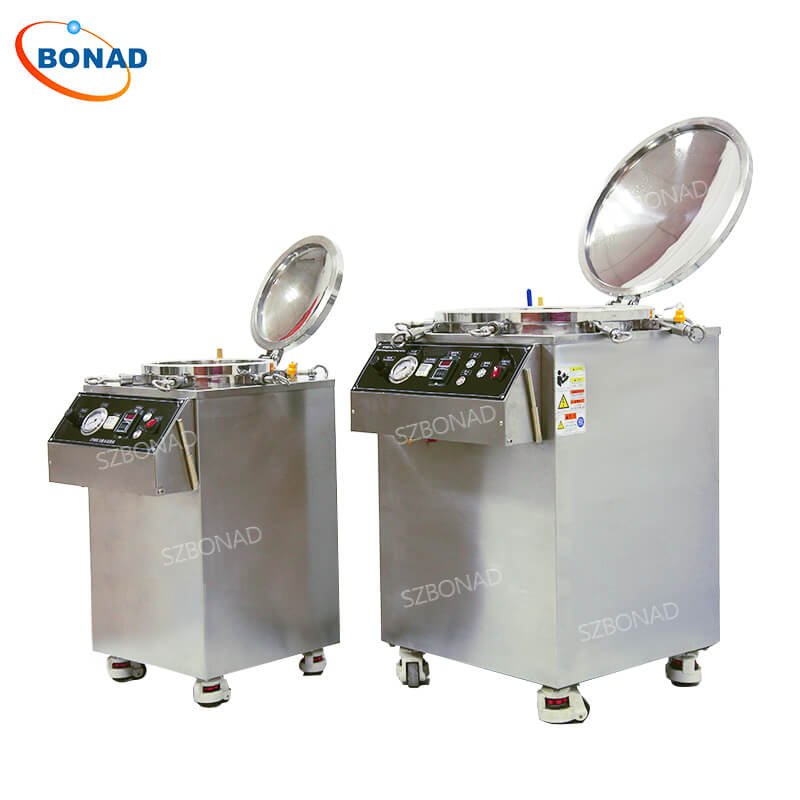

ipx8 Immersion tester.jpgIPX8 TEST EQUIPMENT.jpg







Rain Test Serials.jpg



(Packed by solid plywood case to avoid damages during transportation.)
