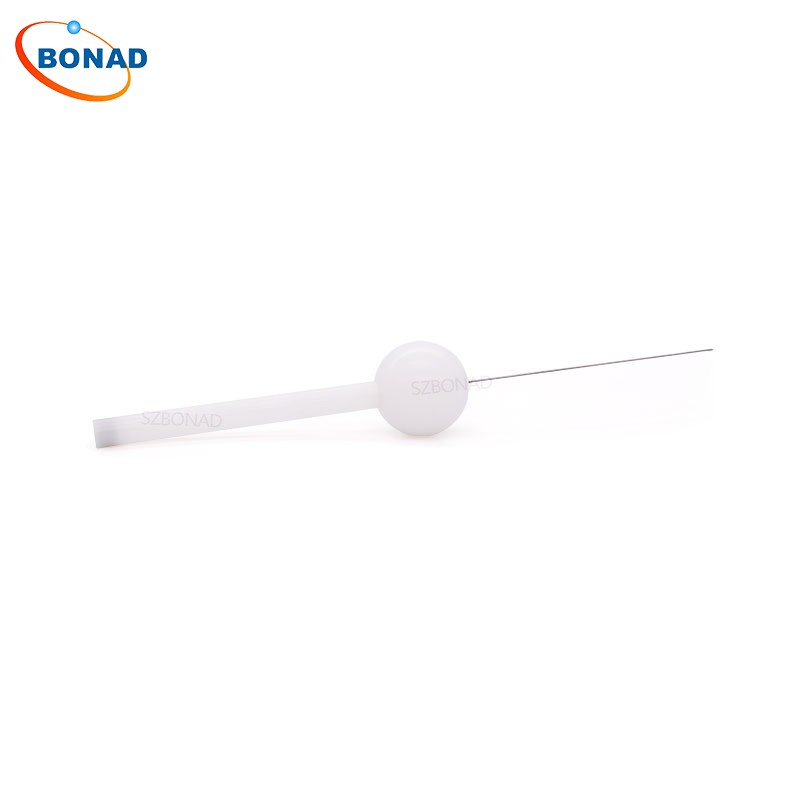

1.0mm IP4X IP40 Test Wire Access Probe As Per IEC60529

Product ID: BND-D
Sizes:Test wire 1.0 mm diameter, 100 mm long
Materials: Polyamides+ DC53 High Hardness Steel
Origin: China
Status: In stock
Product description: IP4X test wire is intended to verify the protection of persons against access to hazardous parts, which is also used to verify the protection against access with a tool. The test wire of 1.0 mm Ø shall not penetrate and adequate clearance shall be kept.

EMAIL

Product Features

1. Insulating material for test probe handle and stop face, metal material for rigid test wire.

2. All specifications are fully in accordance with IEC60529.

3. ISO 17025 / ILAC calibration certificate available. (with extra costs)

4. Packed in portable case, easy to keep and carry.


Reference

Tests for protection against solid foreign objects indicated by the first characteristic numeral specified in IEC60529.

First

characteristic numeral

Test means

Test force

Test conditions

Acceptance conditions

4

Test wire of 2.5 mm Ø

1N±10%

The test probe is pushed against any openings of the enclosure with the test force 1N±10%

The protection is satisfactory if adequate clearance is kept  and 1.0 mm diameter of the probe does not

pass through any opening.


IEC Figure Test Probe D 01.jpg


Product Parameters

Model

Standard

Thrust

Specification

BND-D

IEC61032

IEC60529

None, should be used with a force gauge.



Test Probe Length:100mm

Test Probe Diameter:1.0mm

Dam-sphere Diameter:3.5mm

Handle Diameter:10mm

Handle Length:100mm



Product Images


Probe D+ Force meter.jpg

Tips: The IP4X test probe without force should be used with a force gauge so it could meet the requipments of 1N±10% test force from IEC60529.

You could connect the tail of our test probe with a force gauge when using it.
