IEC 60068 0.14J 0.2J 0.35J 0.5J 0.7J 1.0J Impact Energy Adjustable Spring Impact Test Hammer

Product ID: BND-T106
Standard:IEC 60068-2-75
Origin: China
Impact Energy: 0.14J 0.2J 0.35J 0.7J 1.0J 6 levels adjustable.
Status:In stock
Product description:The advantage of the spring hammer is that it can be used in any position, provided there is enough room to apply it
correctly, and that the specified impact energy does not exceed 2 J.

EMAIL


Product Introduction


A spring-operated impact hammer, also known as a spring hammer or pendulum hammer, is a mechanical device used to test the impact resistance of various products and materials. It is commonly employed in industries such as electronics, automotive, aerospace, and telecommunications.

The hammer consists of a spring mechanism attached to a striking element, typically a hardened steel tip or a hemispherical head. The spring is compressed manually, storing potential energy within it. When released, the spring rapidly expands, transferring the stored energy to the striking element, which impacts the test specimen.

Various international standards, such as IEC 60068 and MIL-STD, provide guidelines for conducting impact testing using spring-operated hammers. Specifically, it is known as IEC 60068-2-75, which is titled "Environmental testing - Part 2-75: Tests - Test Eh: Hammer tests." This standard provides guidelines for conducting impact tests using a spring hammer.



Product Features

1. All specifications are fully in accordance with IEC 60068-2-75.

2. ISO 17025 / ILAC calibration certificate available. (with extra cost)

3. Materials: Polyamide (hammer head)+ Steel

4. Packed in portable case, easy to keep and carry.

5. Six levels of impact energy in one.(Impact Energy: 0.14J 0.2J 0.35J 0.5J 0.7J 1.0J or IK rating: IK01, IK02, IK03 IK04, IK05 and IK06)


Tips

1.The device should be in a state of "released" when it is not used.

2.After the spring is replaced or adjusted, the device should send to be calibrated by the measuring department before usage.

3.This device is precision instrument, please taking up and putting down slightly.

4.Storage condition: 5-35℃, put in a box with desiccant.


Reference

SPRING Hammer Test apparatus 01.jpg

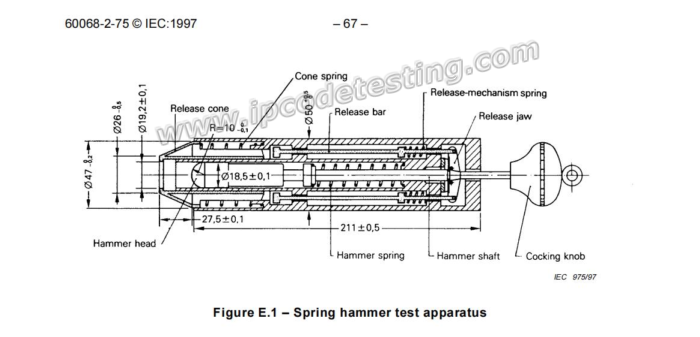

IEC 60068-2-75 Figure E.1- Spring Hammer Test Apparatus

Product Parameter

Adjustable

energy levels-

(6 levels)

0.14±0.01J

0.20±0.02J

0.35±0.03J

0.50±0.04J

0.70±0.05J

1.00±0.05J

Materials

Polyamide+ Steel

Weight

Weight of body: 1,25 Kg.±0,03Kg.

•Weight of release cone: 0,06 Kg.±0,001 Kg.

•Weight of striking element: 0,25 Kg.±0,01 Kg

OD

50mm

Hammer Radius

10mm

Hammer head Hardness

100 Rockwel

The release force of impact

<10N

Standard

IEC 60068-2-75


The IK rating, also known as the impact protection rating, is a standard that measures the resistance of an electrical enclosure or housing to mechanical impacts.

The levels of protection against impact energy are as follows:


IK Level

Energy

IK01

0.14J

IK02

0.2J

IK03

0.35J

IK04

0.5J

IK05

0.7J

IK06

1.0J

IK07

2.0J

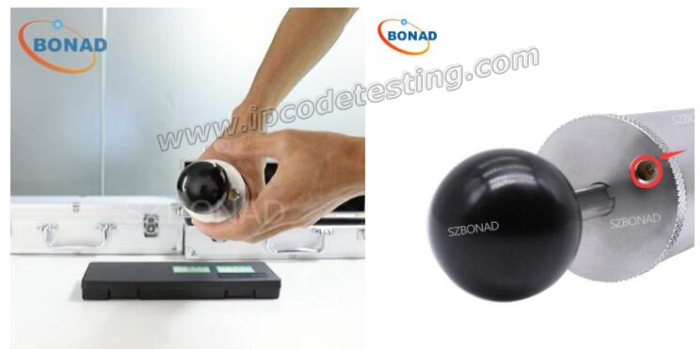

*Way to adjust the energy

 rotate the rear cover, change to the impact energy as test request.

Spring hammer 01.jpg

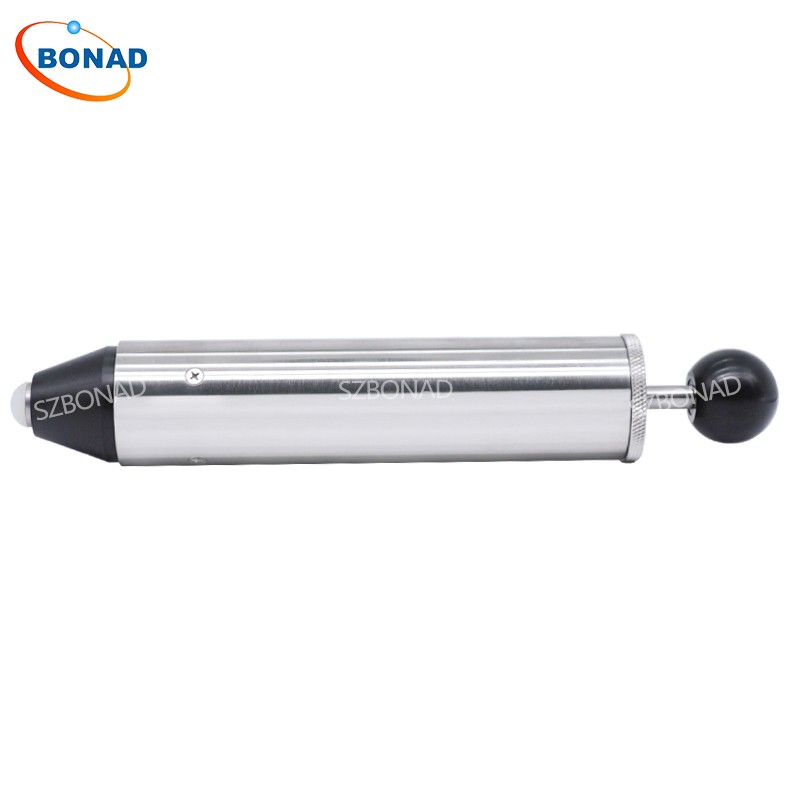

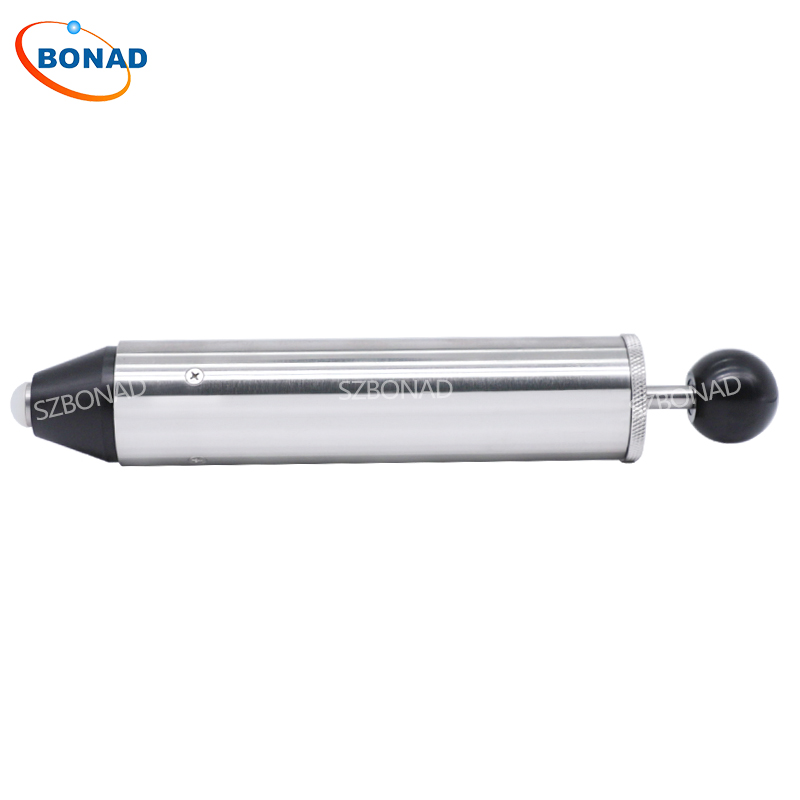

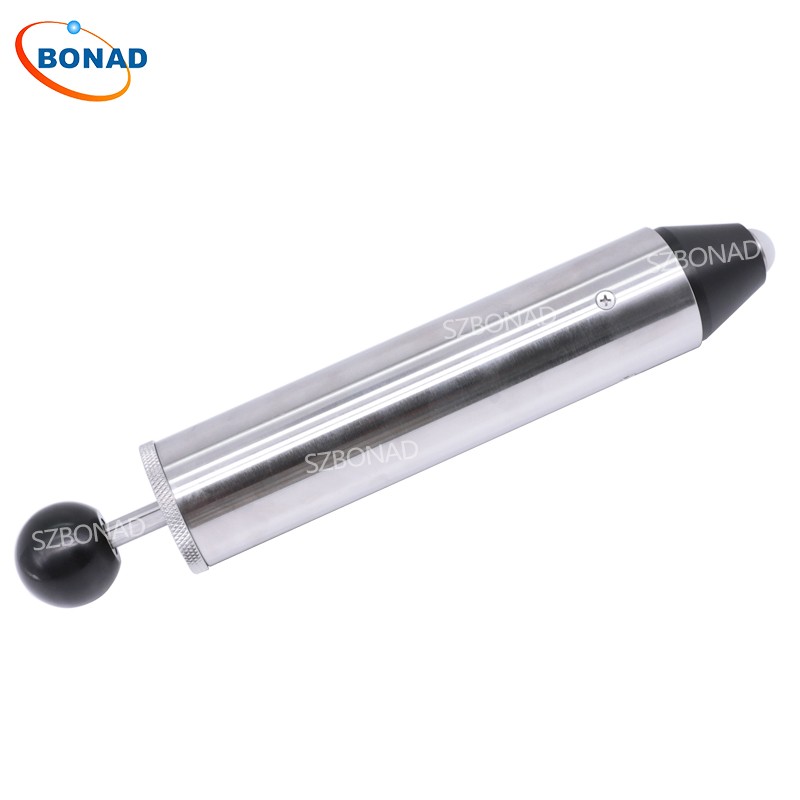

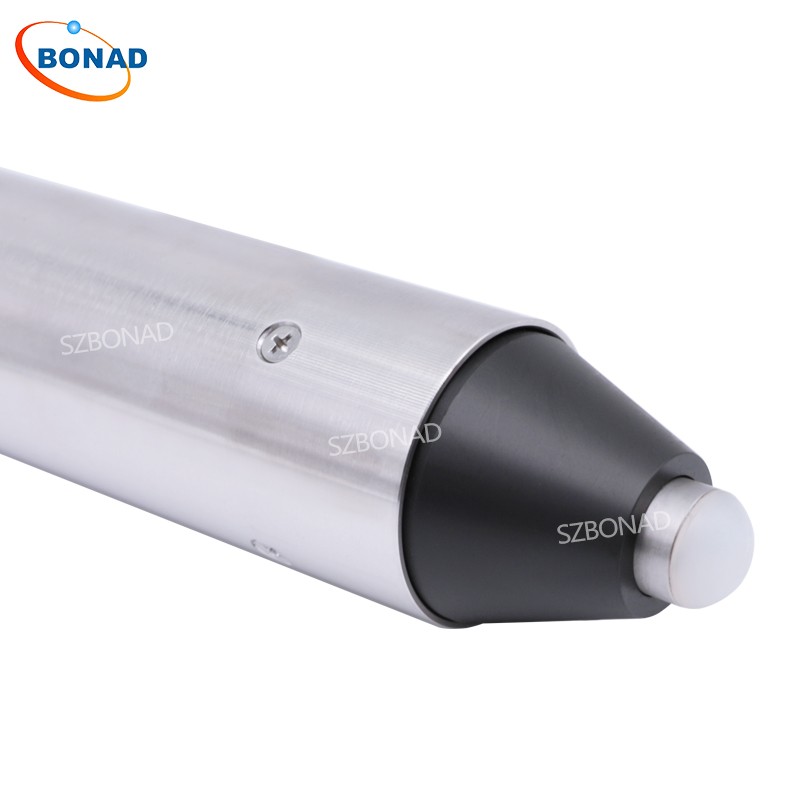

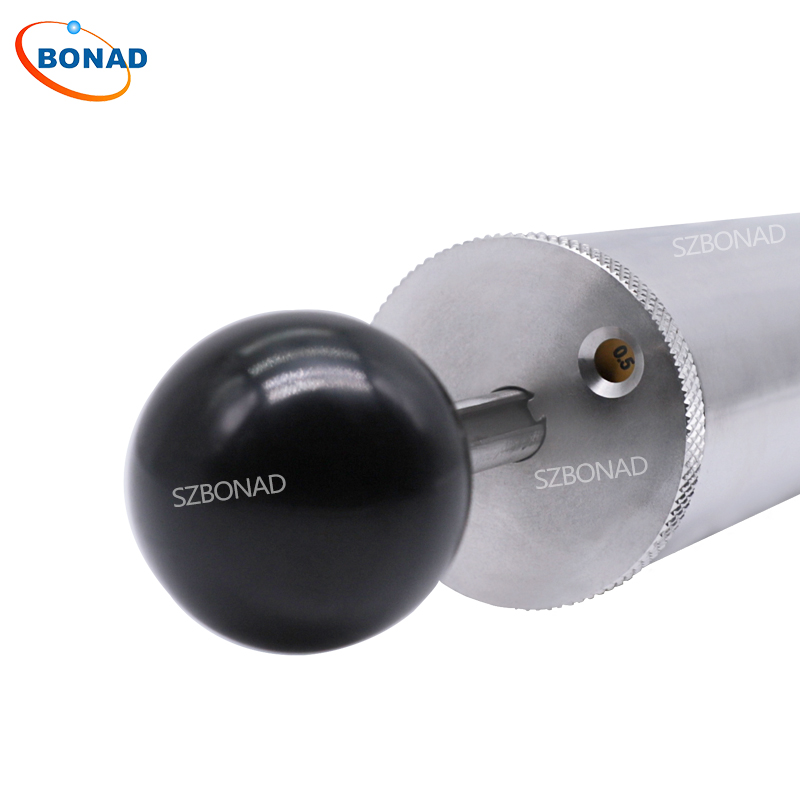

Product Image
