IEC 60529 IP1X 50mm Sphere Access Probe with Test Force 50N

Product ID: BND-AF
Sizes:Sphere 50 mm diameter
Materials: Polyamides+ Stainless steel
Origin: China
Status: In stock
Product description: IP1X rigid sphere probe is used to do the tests for protection against access to hazardous parts and solid foreign objects.The sphere of 50 mm ∅ shall not fully penetrate and adequate clearance shall be kept.

EMAIL

IEC 60529 50N IP1X 50mm Access Probe (BND-AF)/Upgraded IP1X Test Probe for 2024

Bonad proudly presents its upgraded IP1X spherical test probes, designed to meet the exacting demands of ingress protection (IP) testing across various industries. Our commitment to innovation and quality is evident in every aspect of these advanced probes.


Key Features and Upgrade

1.Advanced Material Composition:

Insulating Handle and Guard: Crafted from top-quality insulating materials for safe and ergonomic handling.


2.316 Stainless Steel Rigid Sphere: The 50mm stainless steel is upgraded from 304 stainless steel to 316 stainless steel, significantly increasing corrosion resistance and durability.


3.Innovative Hollow Design: IP1X Sphere is transformed from solid to hollow balls, reducing weight and making the probe more convenient to use.


4.Versatile Dynamometer Capabilities:

50N Dynamometer: Provides adjustable thrust levels of 10N, 20N, 30N, 40N, and 50N, catering to various testing needs.


5.Full Compliance with International Standards:

IEC 60529 and IEC 61032: All specifications fully comply with these international standards, ensuring precise and reliable results.


6.Optional Calibration Certification:

ISO 17025 / ILAC Certified: Calibration certificates are available at additional cost, verifying the probe's accuracy and consistency.


7.Portable and Convenient Packaging:

Compact Storage Case: Packaged in a portable case for easy storage and transportation, facilitating efficient use in diverse testing environments.




Product Parameters

ModelStandardThrust

Specification

BND-AF

IEC60529 IEC61029

IEC60950 IEC61032

IEC60745 IEC60335

IEC60065

50N
(10/20/30/40/50N available)


Ball Diameter:50mm

Baffle Plate Diameter:

45mm

Baffle Plate Thickness:

45mm

Handle Diameter:10mm

Handle Length:100mm


Product Images

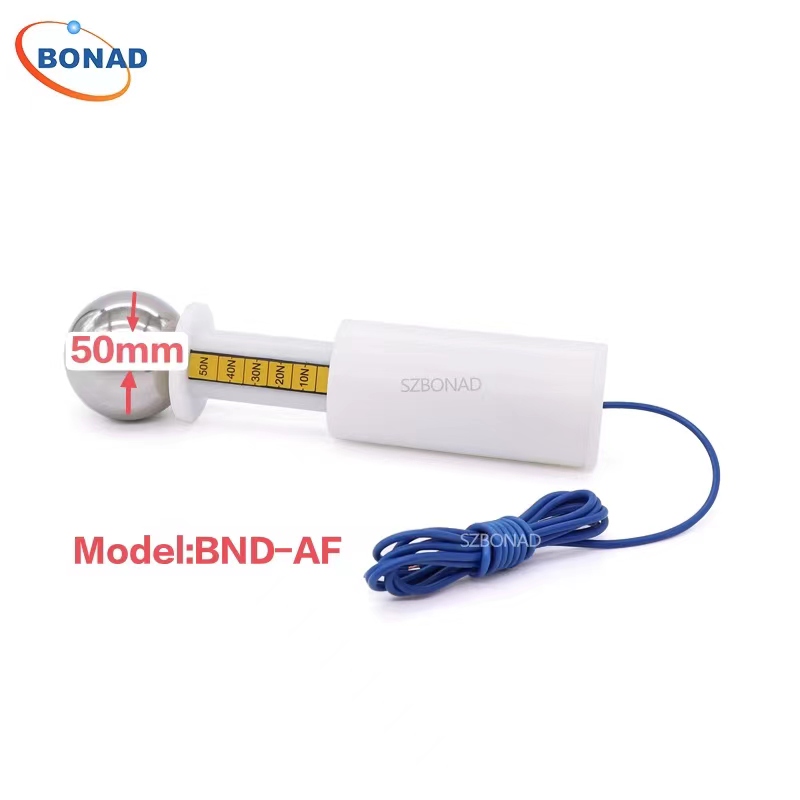

50N 50mm IP10 sphere probe.jpg



Product FAQ


1. What Is IP1X Ingress Production Testing?

IP1X testing is used to determine the protection level of equipment against the ingress of solid foreign objects, with a diameter greater than 50mm.

This test is conducted in accordance with IEC60529 and is an important part of product testing for many industries.

2. What Is Difference Between IP1X And IPX1?

Both IP1X and IPX1 tests are part of the IEC 60529 standard, they evaluate different aspects of enclosure protection.

IP1X is used to assess the level of protection provided by enclosures against solid foreign objects, while IPX1 is used to assess the level of protection against vertically falling water.

As per the IEC 60529 standard, IP1X testing involves using a solid object probe with a diameter of 50 mm to verify the enclosure's ability to prevent the entry of larger solid objects. In contrast, IPX1 testing involves exposing the enclosure to vertically falling water drops for up to 10 minutes and checking its protection against water ingress.


3. How To Conduct IPX1 Testing?

Test Equipment:

Obtain a test probe with a diameter of 50mm, as specified by the IEC 60529 standard.

The probe should be made of a non-conductive material to prevent electrical interference with the equipment being tested.

Our rigid sphere test probe is made from stainless steel and insulating materials, which is a perfect tool for IP1X testing.


50N test probe A.jpg


Test Procedure:

a)Place the product to be tested in a suitable testing area where the IP1X test can be conducted. Ensure that the equipment is powered off and is in a state that allows access to its enclosure.

b)Put the test probe perpendicular to the surface of the equipment's enclosure.

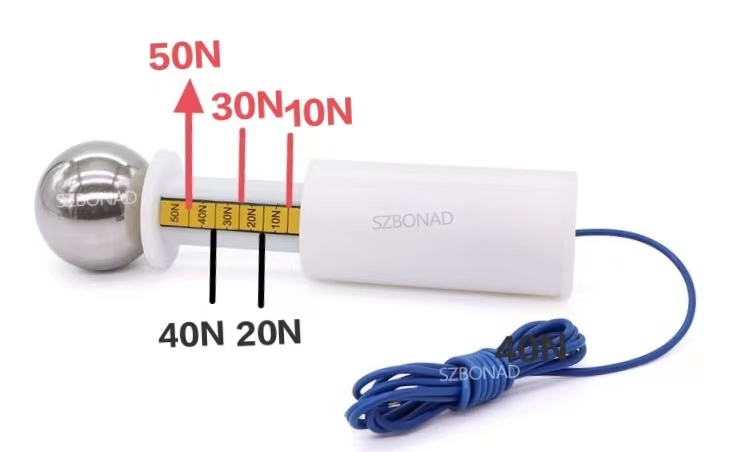

c)Apply a force of 50N to the test probe and  push it against any openings in the enclosure. Our test probe BND-AF is strongly recommended as it is with 50N thruster, which is easier for testing with force. Just push it to the line under the mark 50N to achieve the force of 50N. Same way for 40N/30N/20N/10N testing. (30N test force is required in IEC 60529)





IEC 60529 rigid sphere probe.jpg

d) During the test, carefully observe whether the access probe penetrates any openings or gaps. If any penetration occurs, the equipment does not meet the requirements for IP1X protection.

Record Keeping:

Record the test procedure, including the equipment details, test conditions, and observations made during the test. It is important for compliance and future reference.

Compliance Verification:

After conducting the test, verify whether the product meets the requirements for IP1X protection as per the IEC 60529 standard. If the equipment successfully prevents the test probe from penetrating its enclosure, it complies with the IP1X protection level.


Note: Actual testing for IP1X should be conducted in accordance with the specific requirements outlined in the IEC 60529 standard. Additionally, testing should ideally be performed by trained personnel in a laboratory or testing facility equipped to carry out IP1X testing in a controlled environment.
