IEC 60884 20N Gauge for Checking Non-accessibility of Live Parts

Product Features

1. All specifications are fully in accordance with IEC 60884.

2. ISO 17025 / ILAC calibration certificate available. (with extra cost)

Product Introduction

The gauges shall be applied to the entry holes corresponding to the live contacts only and  shall not touch live parts.  To ensure this degree of protection, socket-outlets shall be so constructed that live contacts  are automatically screened when the plug is withdrawn.  The means for achieving this shall be such that they cannot easily be operated by anything  other than a plug and shall not depend upon parts which are liable to be lost.  An electrical indicator with a voltage between 40 V and 50 V included is used to show contact  with the relevant part.

The gauge according to figure 9 is applied to the entry holes corresponding to the live  contacts with a force of 20 N.  The gauge is applied to the shutters in the most unfavourable position, successively in three  directions, to the same place for approximately 5 s in each of the three directions.  During each application the gauge shall not be rotated and it shall be applied in such a way  that the 20 N force is maintained. When moving the gauge from one direction to the next, no  force is applied but the gauge shall not be withdrawn.

Reference

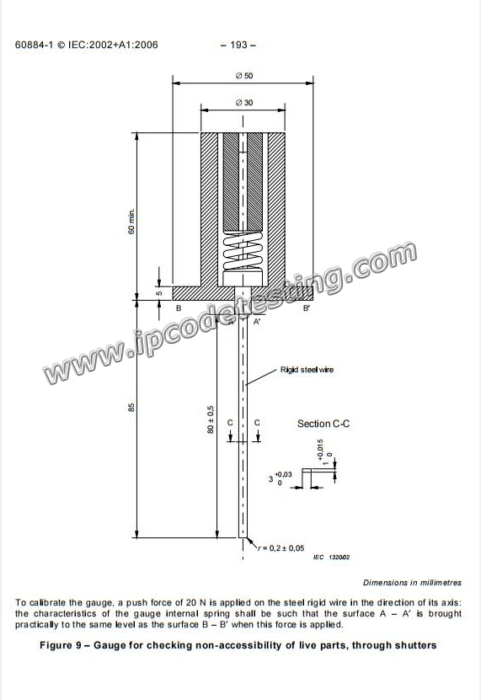

IEC60884-1 Figure 9-Gauge for checking-accessibility of live parts, through shutters

Product Parameter

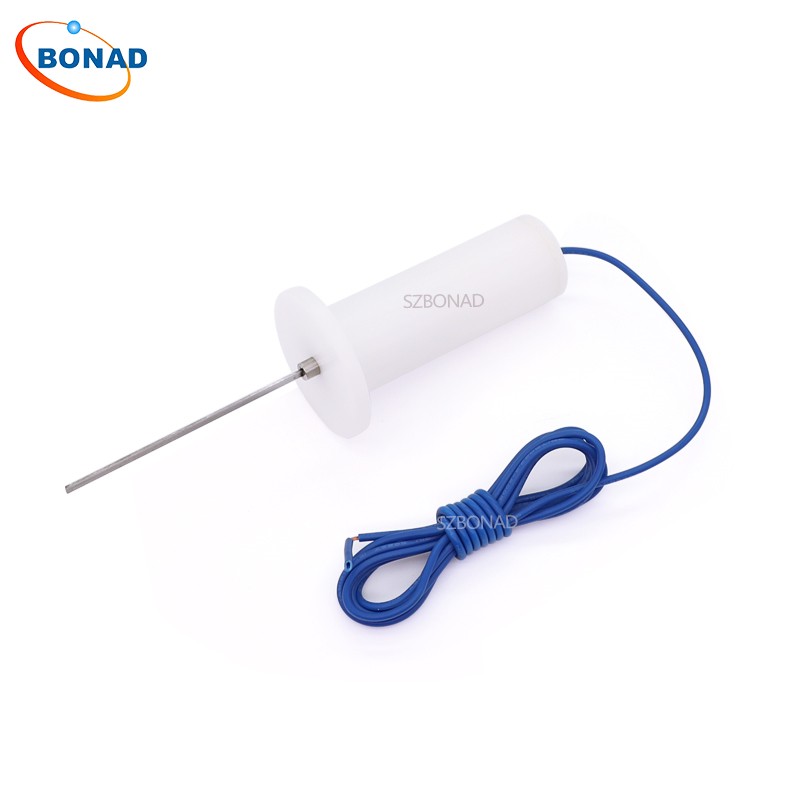

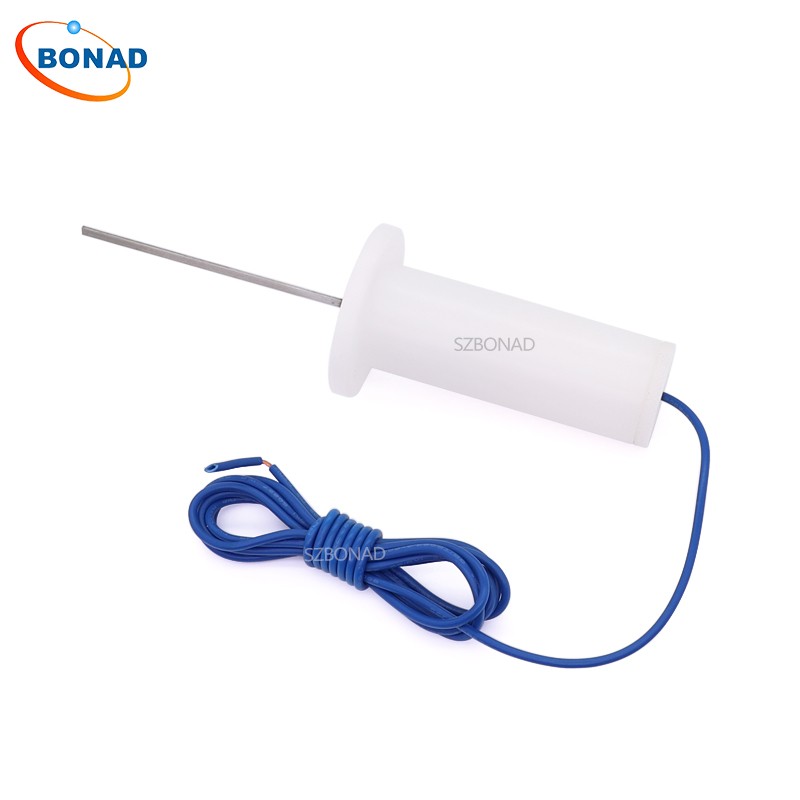

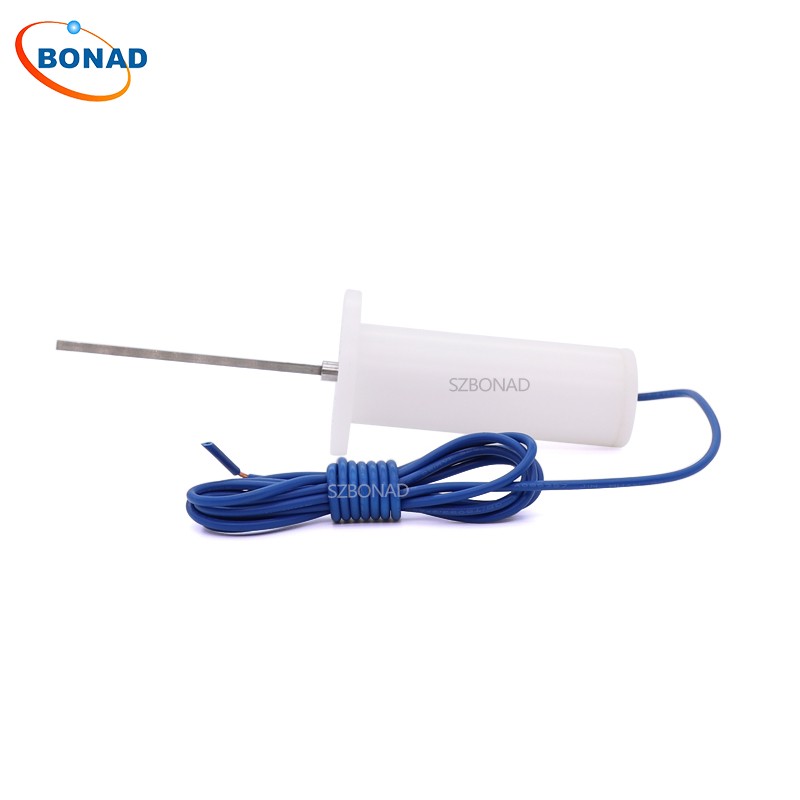

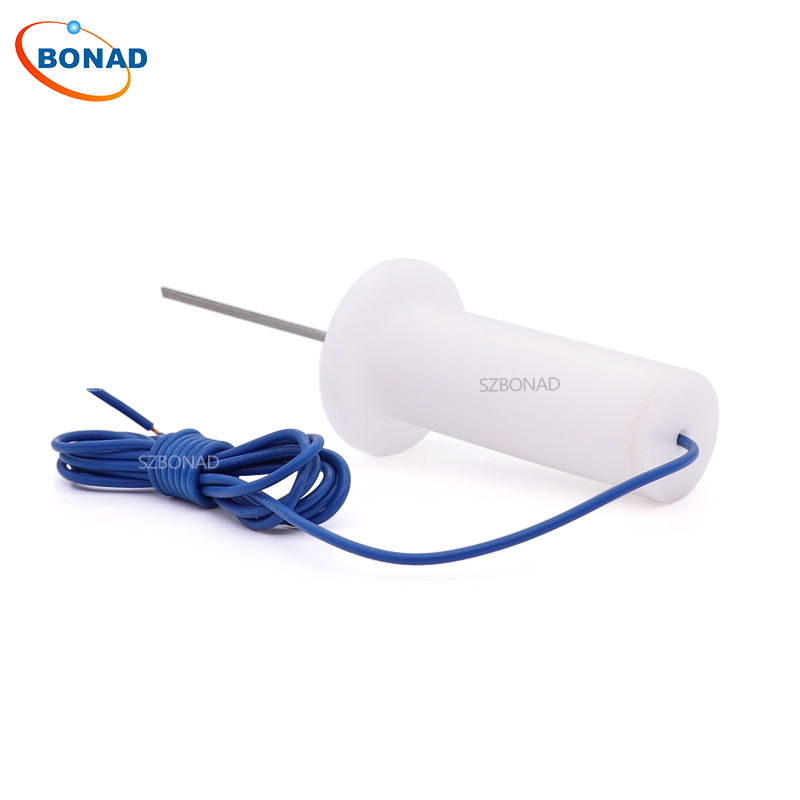

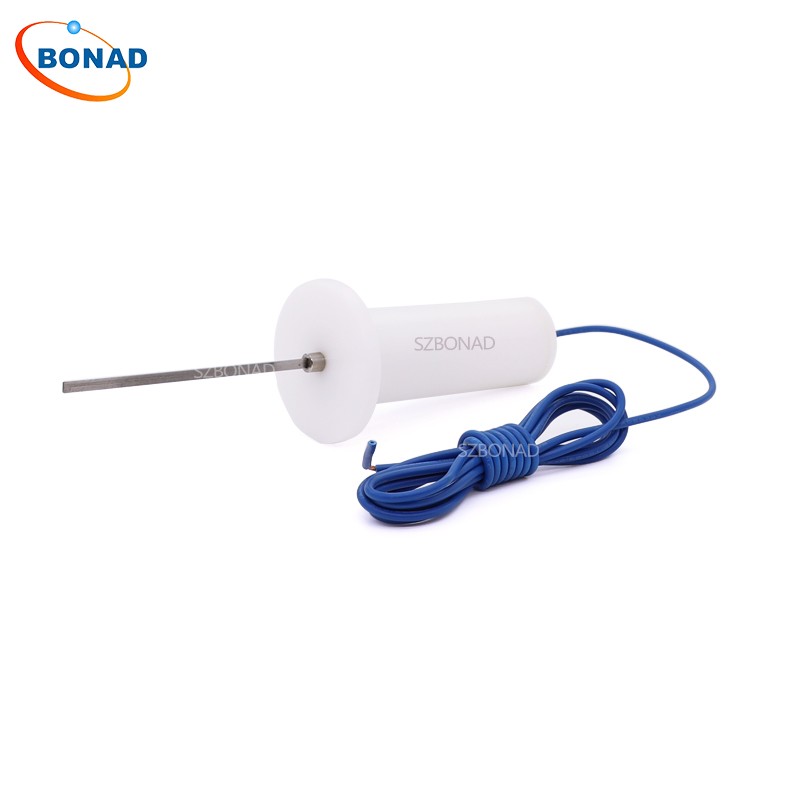

Product Images
