IPX5 and IPX6 Automatic Water Jet Test Chamber

Product ID: BND-IPX56BS
IP Rating:IPX5 IPX6
Origin: China
Delivery time: 25-35 work days.
Package:Plywood case
Warranty:12 months.
Product description:IPX5-Protected against water jets-Water projected in jets against the
enclosure from any direction shall have no harmful effects.

IPX6-Protected against powerful water jets Water projected in powerful jets against the enclosure from any direction shall have no harmful effects.

EMAIL

Product Features

1.Test room made of corrosion-resistant steel.

2.The electrical parts of the turntable are well-sealed so as to avoid electrical hazards caused by water

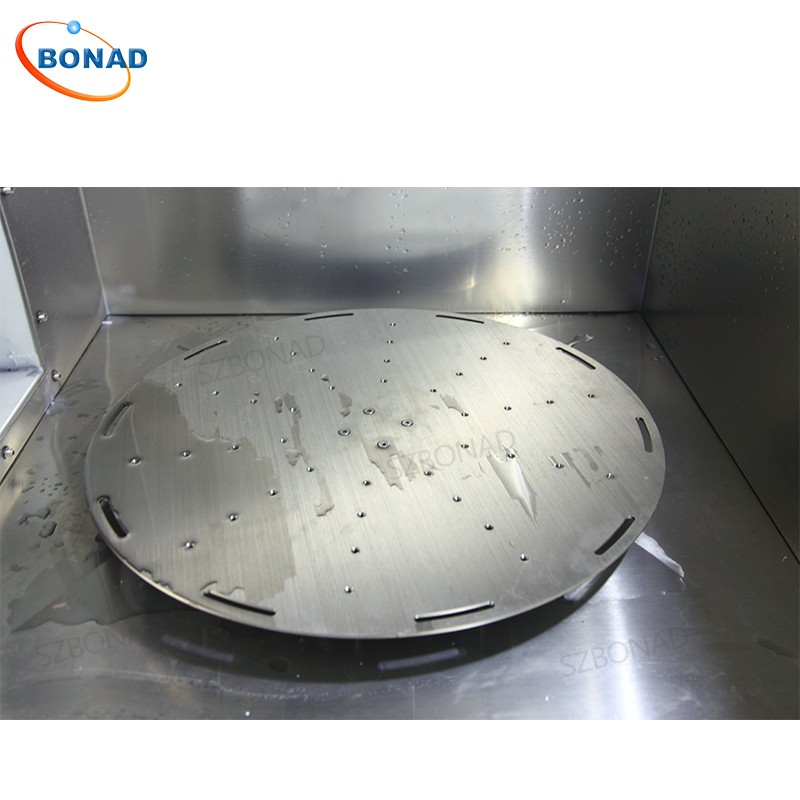

3.The turntable  rotates clockwise alternating with anticlockwise, which is convenient to a electric specimen.

4.Water-saving design- water recycle use.

5.Built-in water tank with flow control valve and low water level alarm.

6.IPX5 water jet test and IPX6 powerful water jet test mode could be switched with the dedicated button.

7.Automatic shutdown after the water proof test.

8.The nozzles can swing up and down automatically.

9. All specifications are fully in accordance with IEC60529.

10. ISO 17025 / ILAC calibration certificate available. (with extra cost)



Reference

According to IEC60529: Degrees of protection provided by enclosures(IP Code)

IP code

Protection against

Effective against

Details

5

Water jets

Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.

Test duration: 1 minute per square meter for at least 15 minutes
Water volume: 12.5 liters per minute
Pressure: 30 kPa at distance of 3 m

6

Powerful water jets

Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects.

Test duration: 1 minute per square meter for at least 3 minutes
Water volume: 100 liters per minute
Pressure: 100 kPa at distance of 3 m

IPX5 IPX6 NOZZLE IEC60529 01.jpg

IEC60529 Figure 6 – Test device to verify protection against water jets (hose nozzle)





Calibration Certificate


IPX34C calibration certificate 01.jpg


* Tips for calibration

1. This is ISO 17025 / ILAC calibration certificate issued by third party lab.

2. It is with extra cost and takes around 7 work days for calibration.

3. Suggested recalibration interval is one year.

4. One item for one certificate and the name and address of your company will be indicated in the cover.



Product Parameters

Model

IPX56BS-500L

IPX56BS-700L

IPX56BS-1400L

IPX56BS-1700L

IPX56BS-1900L

Inner size(mm)W*D*H

800*800*800

900*900*900

1180*1180*1000

1180*1180*1180

1180*1180*1300

Outer size(mm)W*D*H

4000*1050*1600

1150*1150*1700

4000*1450*1800

4000*1450*1850

4000*1450*2000

Turntable diameter(mm)

600

600

800

¢800

800

IPX5 diameter(mm)

6.3

IPX6 diameter(mm)

12.5

IPX5 flow(L/min)

12.5±0.625

IPX6 flow(L/min)

100±5L/min

Power(Mpa)

According to the provisions of water flow regulation

spray water distance

2.5M

Pump

stainless steel multi-stage pump

Spray method

The nozzles swing up and down automatically

Water pipe materials

Stainless steel+PPR

Inner box materials

SUS304#stainless steel

Sample table materials

SUS304#stainless steel plate

protector

Electric leakage, water-break, cutting-out

Power supply(V)

380V

Power(KW)

3

Standard

IEC60529.(IPX5,IPX6)





Product Images

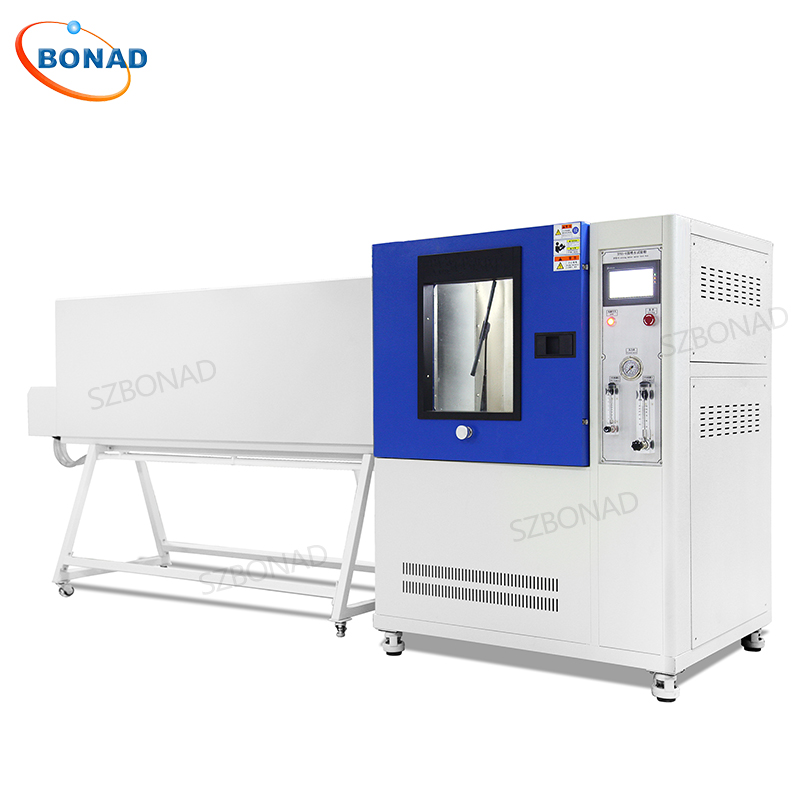

IPX5 Water Jet Test Chamber.jpg

iec60529 IPX5 ipx6 water jet chamber.jpg

IPX5 IPX6 waterproof test chamber.jpg

IPX6 Powerful water jet test chamber.jpg

IPX5 IPX6 Test equipment.jpg


Rain Test Serials.jpg



(Packed by solid plywood case to avoid damages during transportation.)
