Product ID: BND-IPX56AS
IP Rating:IPX5 IPX6
Origin: China
Delivery time: 25-35 work days.
Package:Plywood case
Warranty:12 months.
Product description:Tests for ratings IPX5 and IPX6 address ingress from a jetting water stream tests for these ratings are conducted using a Jet Nozzle Kit. Testing to IPX6 also requires a water tank and a high pressure water source. IPX56 powerful water Jet test equipment is designed according to IEC60529 (also EN 60529) liquid ingress protection IPX5 and IPX6, which is mainly used for testing the resistibility of electro-technical products against water and determining IP protection types.
Product Features
1.Test room made of corrosion-resistant steel.
2.The electrical parts of the turntable are well-sealed so as to avoid electrical hazards caused by water
3.The turntable rotates clockwise alternating with anticlockwise, which is convenient to a electric specimen.
4.Water jet testing time is controlled by a time relay, which is easy to operate and service
5.Built-in water tank with flow control valve and low water level alarm.
6.IPX5 water jet test and IPX6 powerful water jet test mode could be switched with the dedicated button.
7.Automatic shutdown after the water proof test.
8. All specifications are fully in accordance with IEC60529.
9. ISO 17025 / ILAC calibration certificate available. (with extra cost)
Reference
According to IEC60529: Degrees of protection provided by enclosures(IP Code)
IP code | Protection against | Effective against | Details |
5 | Water jets | Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects. | Test duration: 1 minute per square meter for at least 15 minutes |
6 | Powerful water jets | Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. | Test duration: 1 minute per square meter for at least 3 minutes |

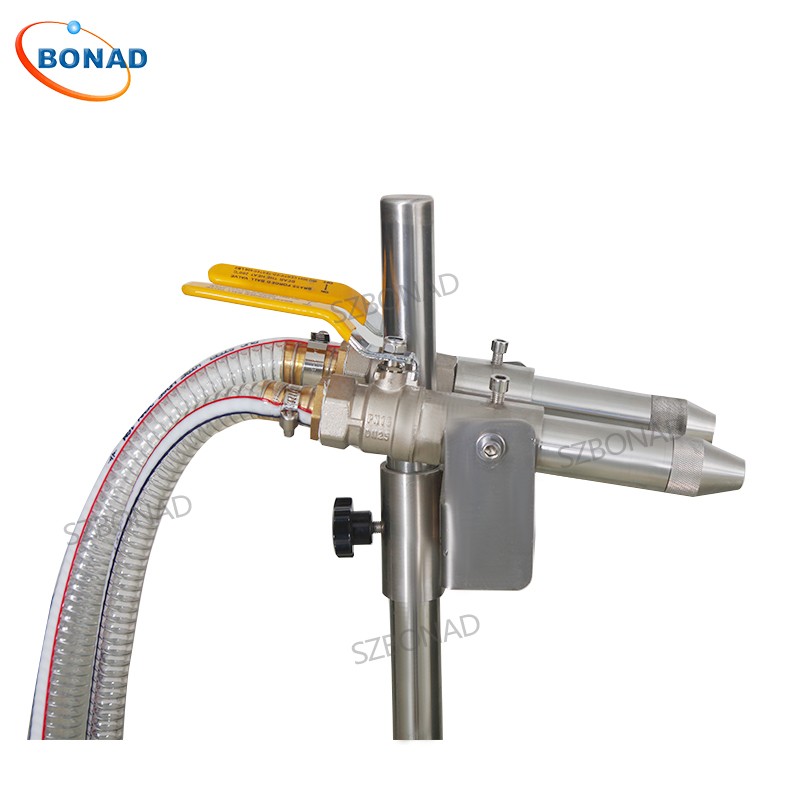

IEC60529 Figure 6 – Test device to verify protection against water jets (hose nozzle)
Calibration Certificate
* Tips for calibration
1. This is ISO 17025 / ILAC calibration certificate issued by third party lab.
2. It is with extra cost and takes around 7 work days for calibration.
3. Suggested recalibration interval is one year.
4. One item for one certificate and the name and address of your company will be indicated in the cover.
Product Parameters
No. | Model | BND-IPX56AS |
1 | Control System | Touch screen panel |
2 | Equipment Outer dimensions (mm) | About L1000 * D800 * H1300 (including casters） |
3 | Water storage tank capacity | 550L, a size of about 800 × 600 × 1145 (mm), 304 stainless steel |
4 | IPX5 water aperture (mm) | 6.3 |
5 | IPX6 water aperture (mm) | 12.5 |
6 | IPX5 water flow (L / min) | 12.5±0.625 |
7 | IPX5 water flow (L / min) | 100±5L/min |
8 | Water pressure (Mpa) | Prescribed water flow regulator |
9 | Flow control | Using band regulating flow meter |
10 | Spray distance | 2.5*3m (test personnel Control) |

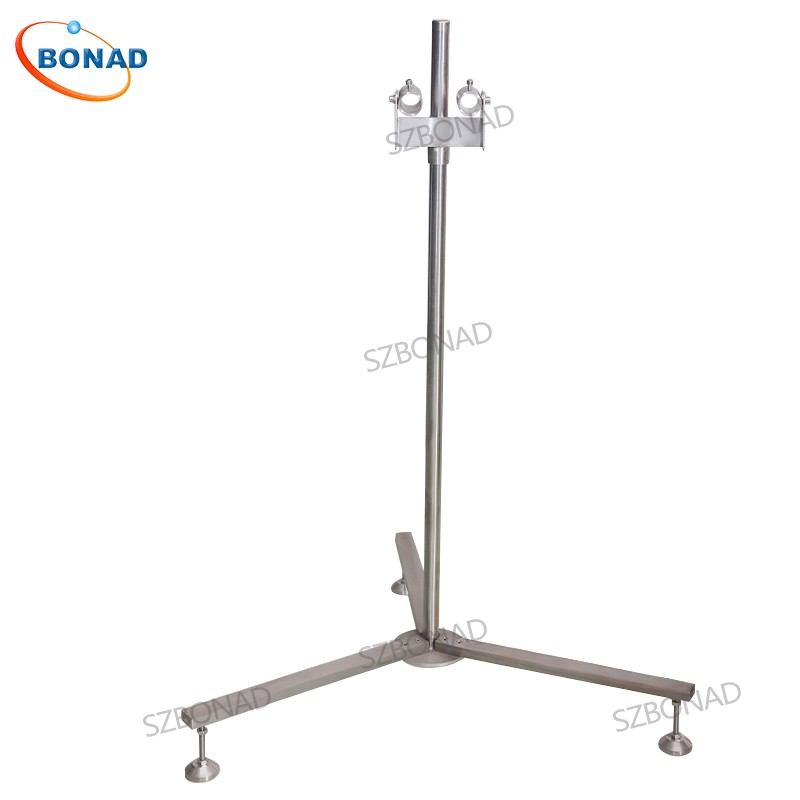

11 | Gun fixation | Handheld |
12 | Pump | Stainless steel multi-stage pump |
13 | Waterway material | Stainless steel + PPR pipe welding |

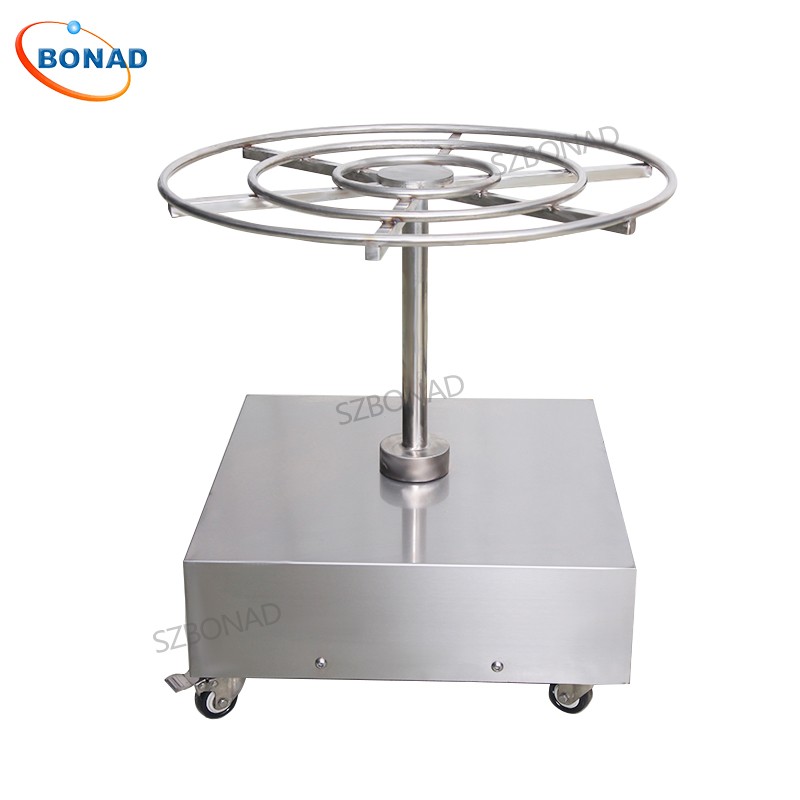

14 | Turntable Diameter (mm) | 600 |
15 | Turntable load power | AC220V |
16 | Material | SUS304#Stainless steel |
17 | protective device | Leakage, water shortage, short circuit |
18 | Power supply(V) | 380V |
19 | Power（KW） | 3 |
20 | Standard | IEC60529:1989+A1:1999.（IPX5 IPX6) |

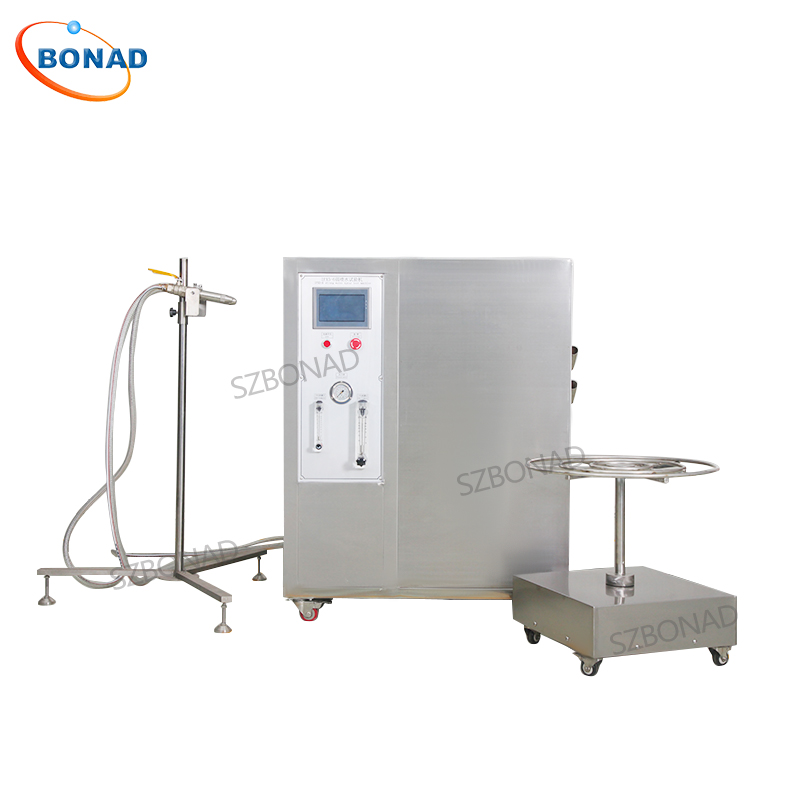

Product Images
(Packed by solid plywood case to avoid damages during transportation.)
